Body Fender Kit for Chinese ATV - Coolster 3150, Tao Tao Bull, Rhino - 2 piece

ATV Body Fender Kit Front and Rear Black with Black Trim

• Fits Coolster 3150, 3150DX, 3150DX-2 and 3175U.
• Fits Tao Tao Bull 150, Bull 200 and Rhino 250.

NOTE: All body kits are non-returnable. Please be sure this is what you need before ordering.

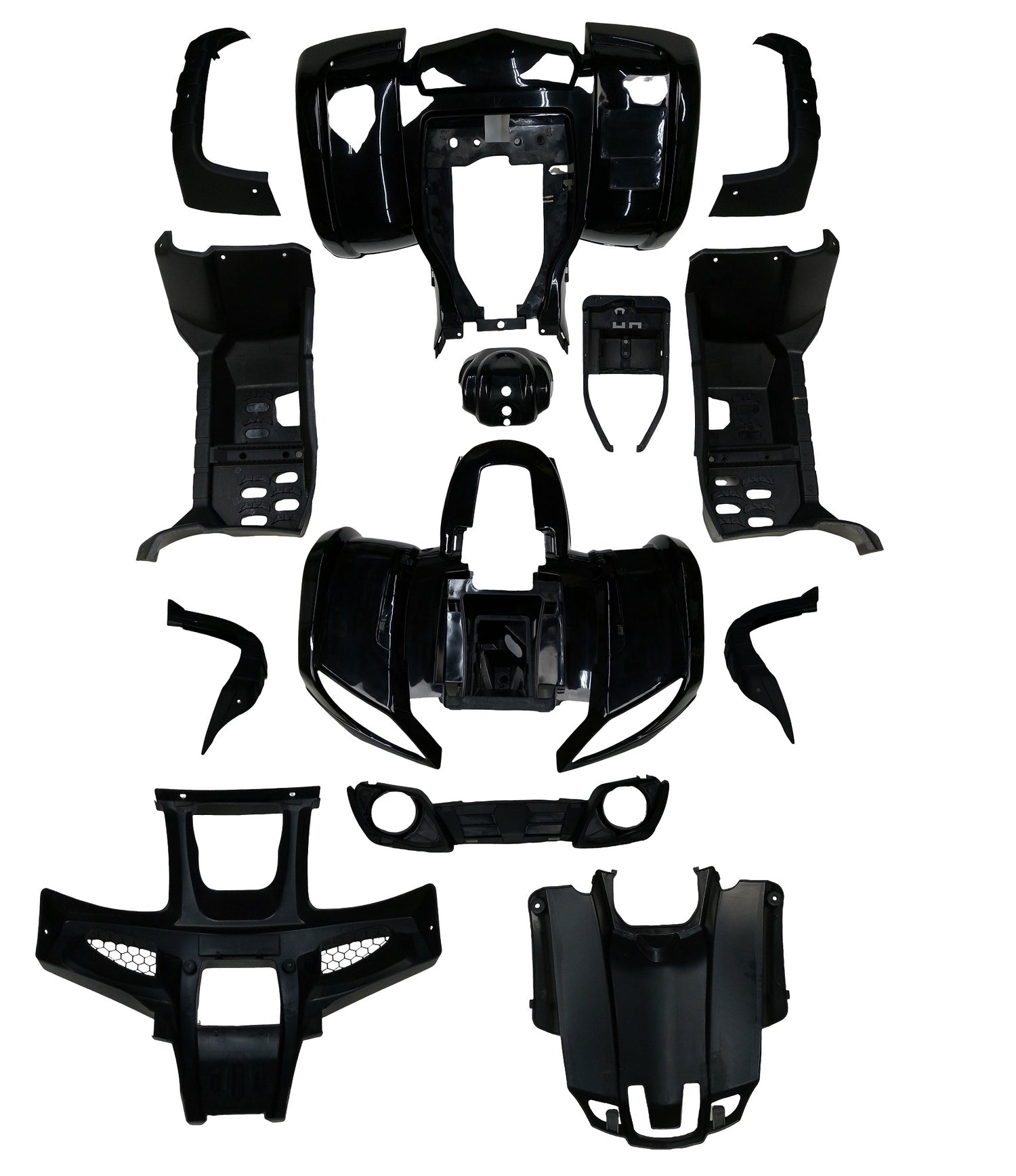

This is a complete body kit. Three piece. Please check the pictures and measurements close to insure a correct fit on your machine.

Front fender details:

• Front fender length: 32.25
• Front fender width: 31.5"
• Two small mounting tabs with holes on the rear of the panel 7.3" center-to-center apart
• Two small mounting holes on the front of the panel 5.8" center-to-center apart
• Two large mounting tabs in the middle of the panel about 14.5" apart
• 3 holes on the back of the front fender to mount foot rests

Rear fender details:

• Rear fender length: 29"
• Rear fender width: 30"
• Rear fender length: 29"
• Battery box is molded into rear fender
• Battery box measurements: 144mm x 91mm x 117mm [L x W x H]
• Battery box measurements [standard]: 5.66" x 3.58" x 4.60"
• Four mounting holes about 8" from rear of rear panel
• Three mounting holes at front of rear panel... large one in the middle and two smaller ones on the sides
• 3 holes on front of rear fender to mount foot rests
