Wheel Rim Assembly - Rear - 12" Steel 15mm ID - Version Hub C - BLACK with Rotor, Sprocket, Tire and Tube
Wheel Rim Assembly - Rear - 12" Steel 15mm ID - Version Hub C - BLACK with Rotor, Sprocket, Tire and Tube is backordered and will ship as soon as it is back in stock.
Pickup available at 2875 N Berkeley Lake Rd NW #4
Usually ready in 1 hour
Not sure? Text or email a photo of your old part or your engine model number. We'll confirm it fits before you buy.
Delivery and Shipping
Delivery and Shipping
Ships from our Duluth, Georgia warehouse.
Most in-stock orders ship the same business day. UPS orders placed before 3:00 PM ET, USPS orders before 12:00 PM ET. After the cutoff, they go out the next business day.
Standard delivery runs 2 to 6 business days to most US addresses. US territories take 7 to 14. These are carrier estimates, not guarantees.
Free shipping on most parts, no minimum order. Oversized items (body kits, wheels, tires, batteries, and engines) are quoted to your address and shown at checkout before you pay.
We ship UPS and USPS, and email your tracking number as soon as the order leaves.
Questions? Call or text 404-532-9833. Full details on our Shipping page.
Wheel Rim Assembly - Rear - 12" Steel 15mm ID - Version Hub C - BLACK with Rotor, Sprocket, Tire and Tube is backordered and will ship as soon as it is back in stock.
Description
Description
Wheel Rear 12" Steel 15mm Axle Hub C BLACK with Rotor Sprocket, Tire and Tube
Chinese rear rim wheel for 110cc, 125cc dirt bikes. This size is used on several makes and models including newer Apollo dirt bikes. Pay special attention to the Axle hole size. Please use detailed measurements and pictures to help you get the correct rim for your machine.
Details:
- Black
- 12" x 1.85"
- 32 spoke
- Rear Hub Axle hole ID: 15mm
- Overall width of rim: 6.86cm [2.7"]
- Overall rim diameter: approx 33cm [13"]
- Center hole diameter: 15mm
- Sprocket: 428 Chain Size 41 Teeth
- Bolt hole spacing Sprocket: 64mm [2.52"] center to center
- Bolt hole spacing Sprocket diagonally: 91mm [3.6"]
- Rotor OD 187mm [7.37"]
- Bolt hole spacing Rotor: 70mm [2.75"] center to center
- Bolt hole spacing Rotor diagonally: 100mm [3.93"]
- Bearings: 6202RS
- Width of rim thru the wheel: 132.35mm (see picture)
- Uses a 3.00 x 12 tire
Known to Fit: Newer Apollo dirt bikes 110cc/125cc with 15mm axles
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Parts you may also need
-

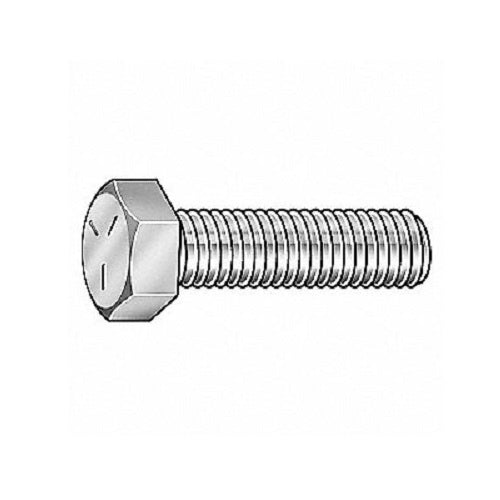

Bolt M8-1.25 20mm
SKU: BOLT-M8-1.25-20$5.47
-
Screw M8-1.25 for Brake Rotor for HUB C
SKU: SCRW-0011$4.97
-

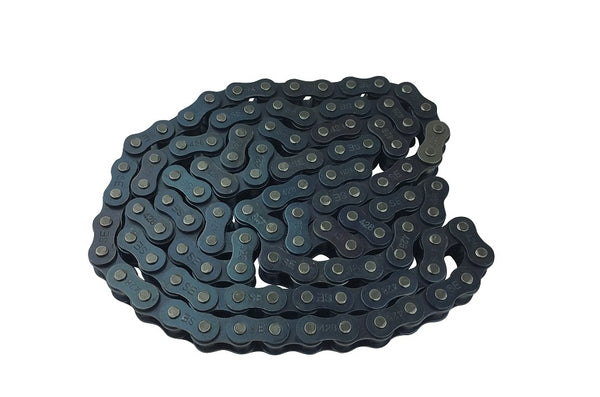

428 Drive Chain 110 Link Dirt Pit Bike 110cc 125cc Honda Chinese TaoTao Apollo
SKU: CHAN-0428-110$17.97
-

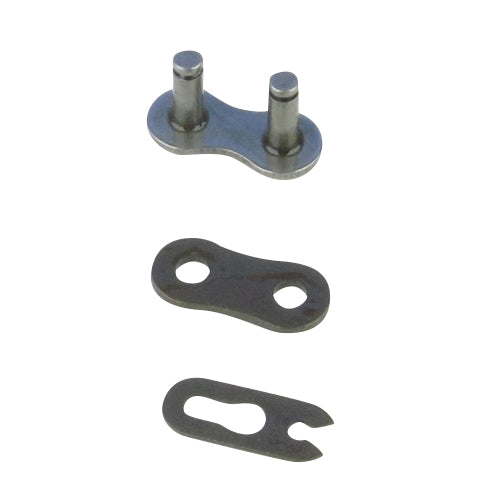

Chain Master Link - 428
