125CC 4 Stroke Auto w/Reverse Engine Motor for 70cc 90cc 110cc Go Kart ATV
Brand New High Quality Engine, 4 Stroke, Automatic Transmission with Reverse, electric start.
Fits most China made 125cc ATVs and Go Karts.
Includes:

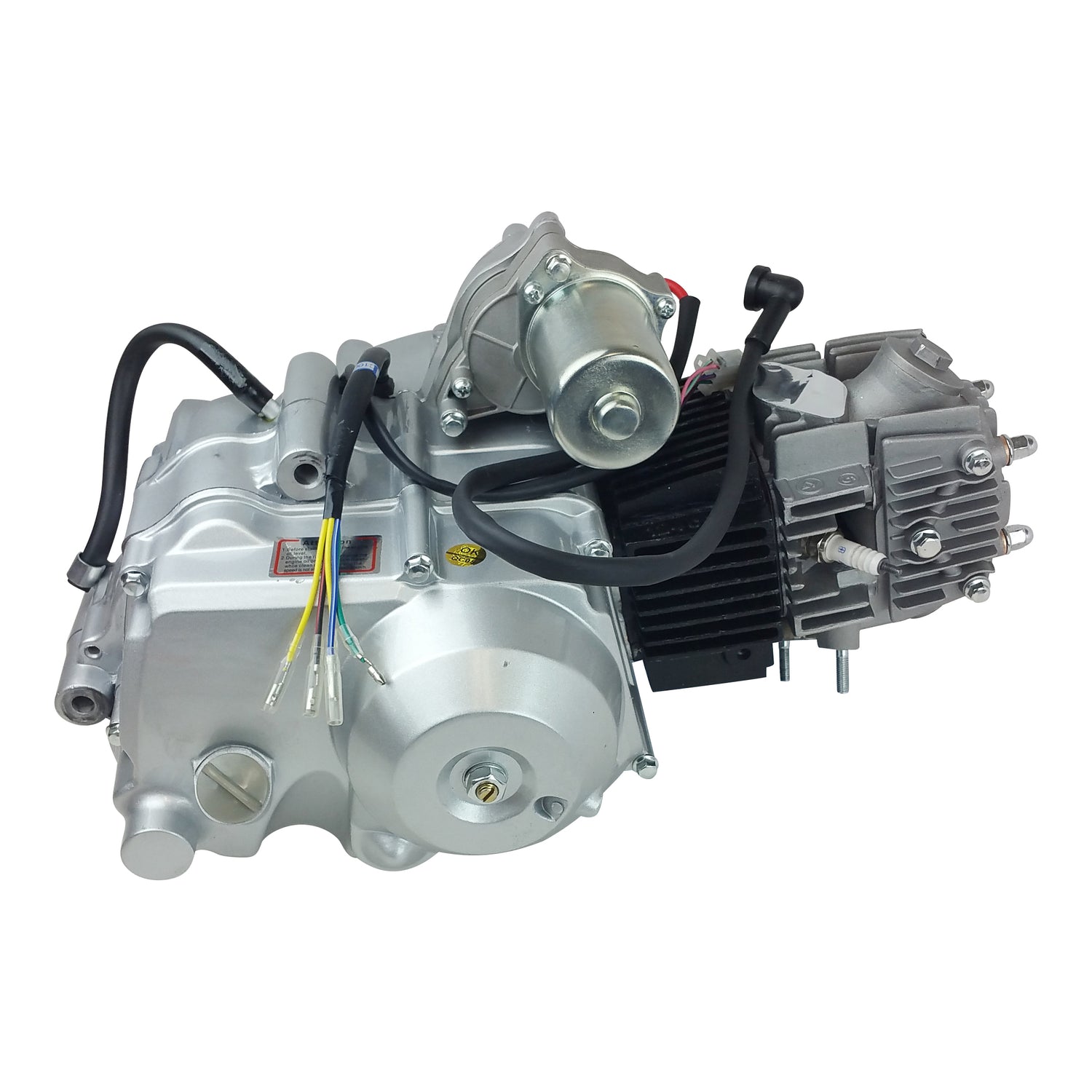

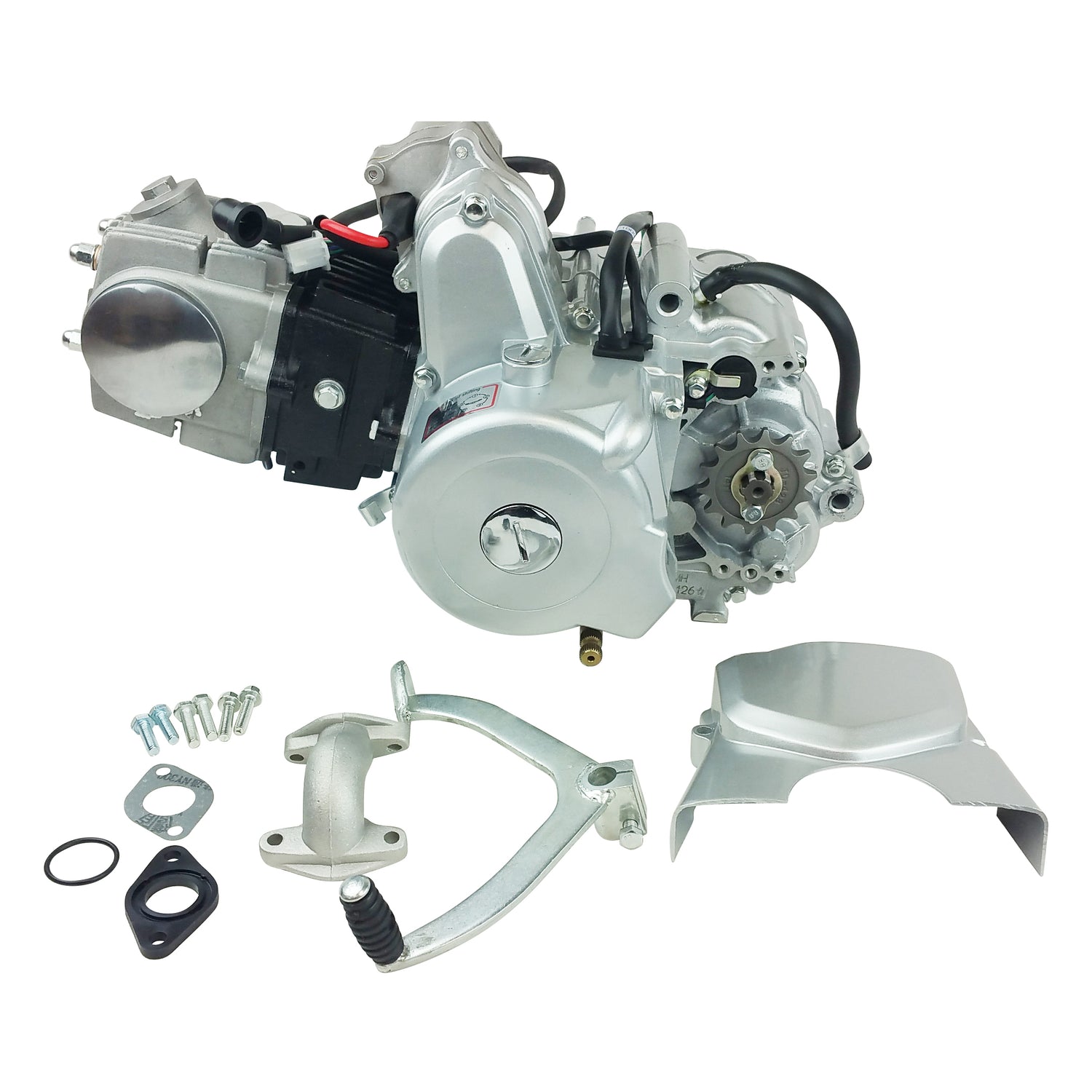

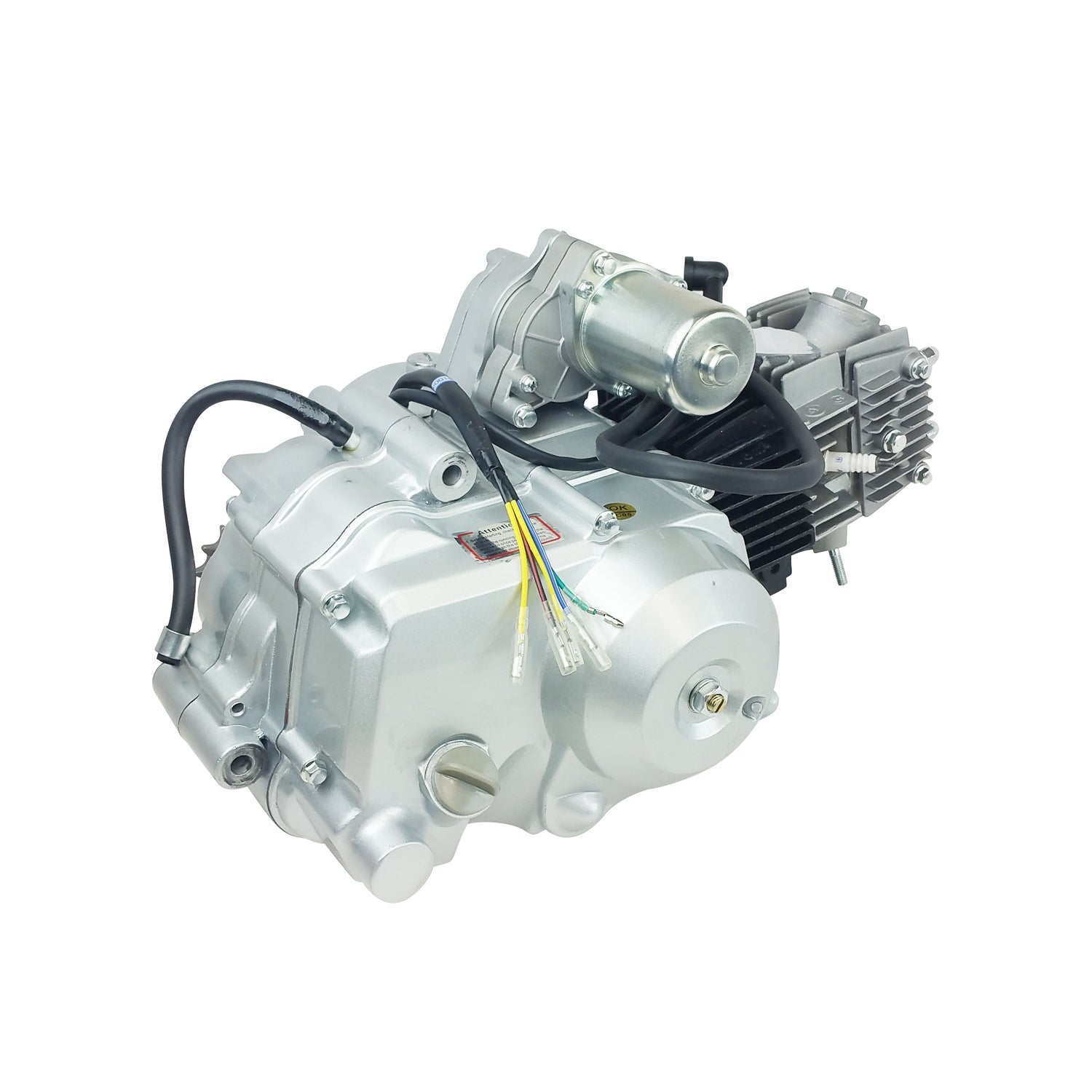

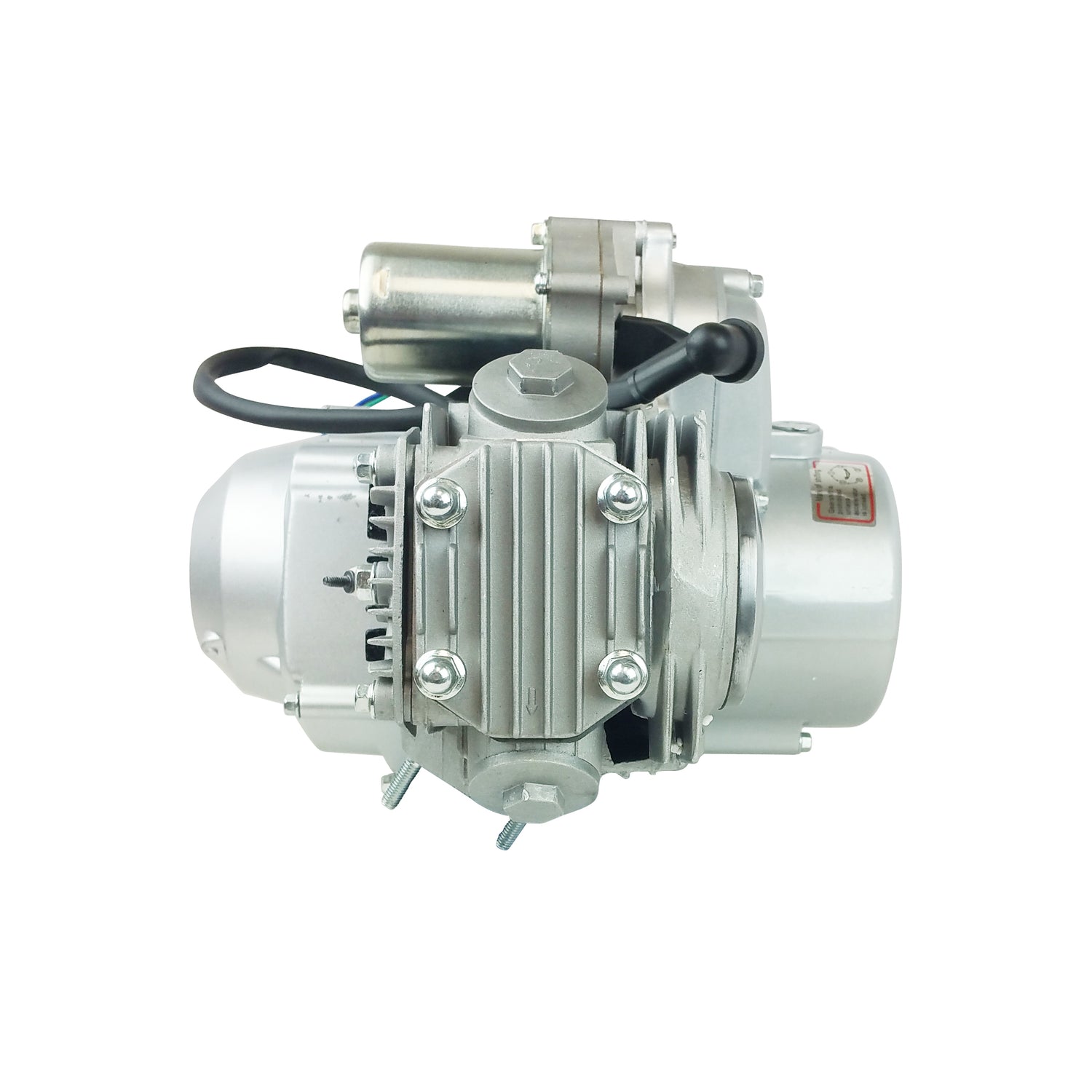

- Engine Assembly with Starter Motor and Stator as pictured
- Intake Manifold Pipe
- Spark Plug.
DOES NOT come with Carburetor, Battery, CDI, Voltage Regulator and Ignition Coil.
Compatible Models: Coolster, Taotao, Roketa, Kazuma, Terminator, Lynx, Redcat, Tank and more.
NOTE: Please check the images and physical size to ensure you order the correct Engine.
Specifications:
- Sprocket: 14T 428 17mm
- Ignition Method CDI
- Engine Type Single Cylinder, 4-Stroke, 2-Valve
- Lubrication Pressure/splash
- Cooling System Air Cooled
- Fuel Supply Carburetor Atomization
- Horsepower 7.64HP/7000-8000Rpm (5.7KW/7000-8000Rpm)
- Starter Electric Starter
- Max. Torque 8.0N.m/5000-6000rpm
- Transmission: Semi Automatic (3 forward,1 reverse)
- Min. Stable Idle Speed 1350-1650r/min
- Clutch Automatic Multi-plate Wet Clutch
- Min. Fuel Consumption 9.65oz/HP.h (367g/Kw.h)
- Cylinder Diameter 2.13" (54mm)
- Carburetor Model PZ22
- Piston Stroke 1.95" (49.5mm)
- Carburetor Type Plunger type carburetor
- Bore & Stroke 2.13" x 1.95" (54mm x 49.5mm)
- Spark Plug Model A7TC
- Cylinder Working Volume 0.03 Gallon (120ml)
- Fuel No. >= 87#
- Compression Ratio 9.0:1
- Lubrication Model SF15W/40-SE
- Ignition Type CFW
- Lubrication Capacity 0.20 Gallon (900ml)
- Model: 154FMI

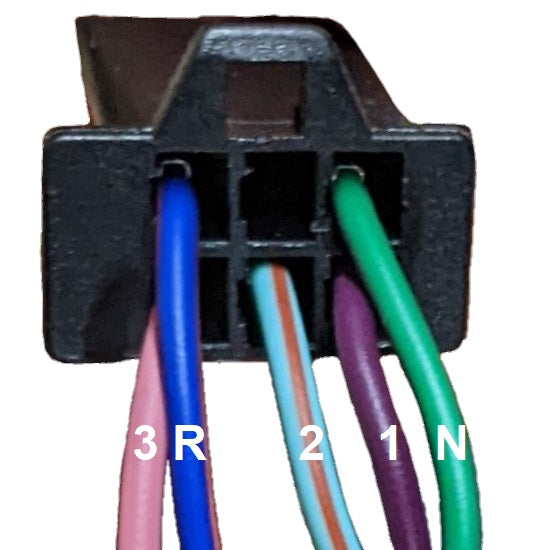

- yellow lines: 12v battery or lighting
- red/black line: firing
- blue/white line: trigger
- green line: ground
