8-Coil Stator Magneto Plate with 5 Wire Plug for CG 125cc-250cc 4 Stroke ATV Quad Dune Buggy Dirt Bike TaoTao Scooter

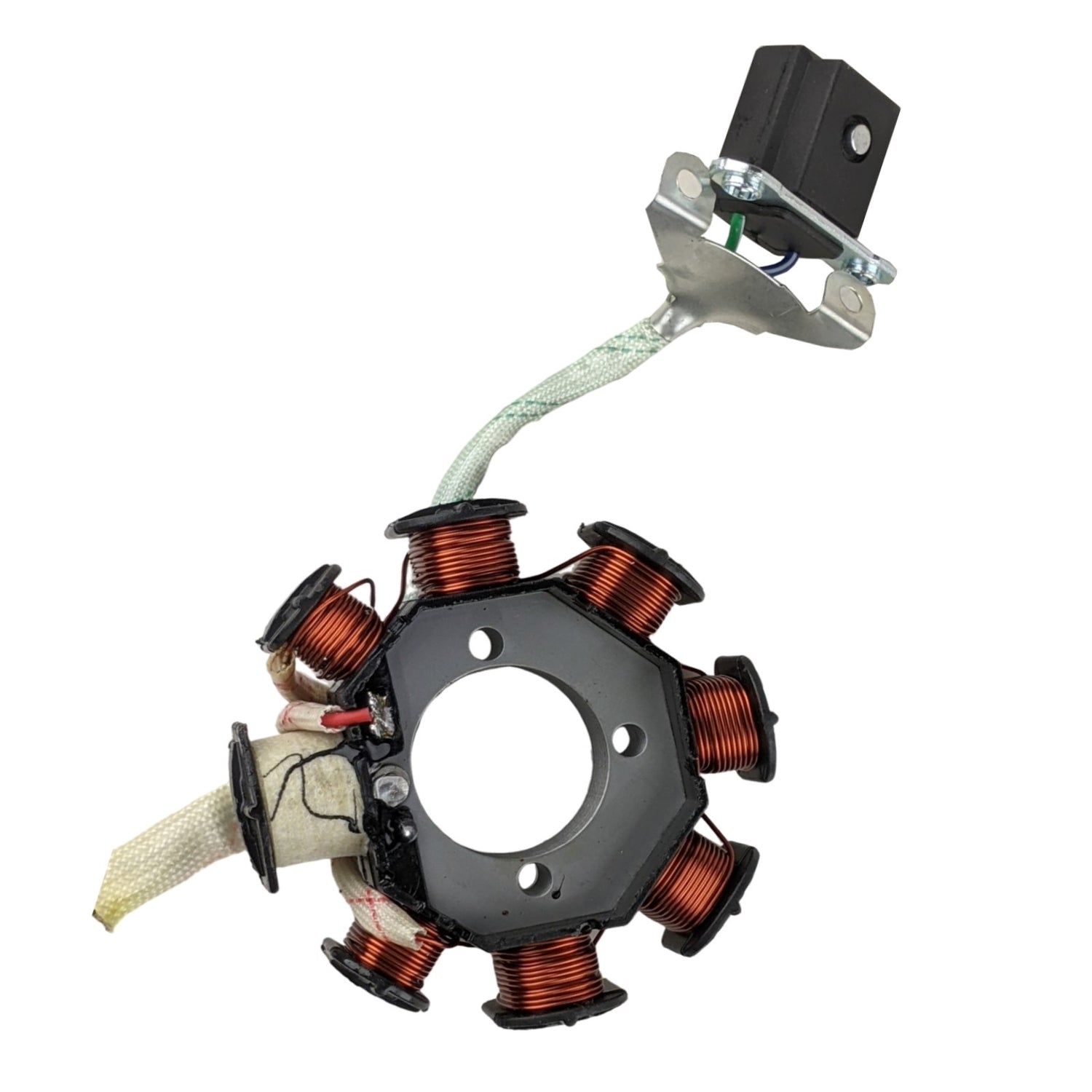

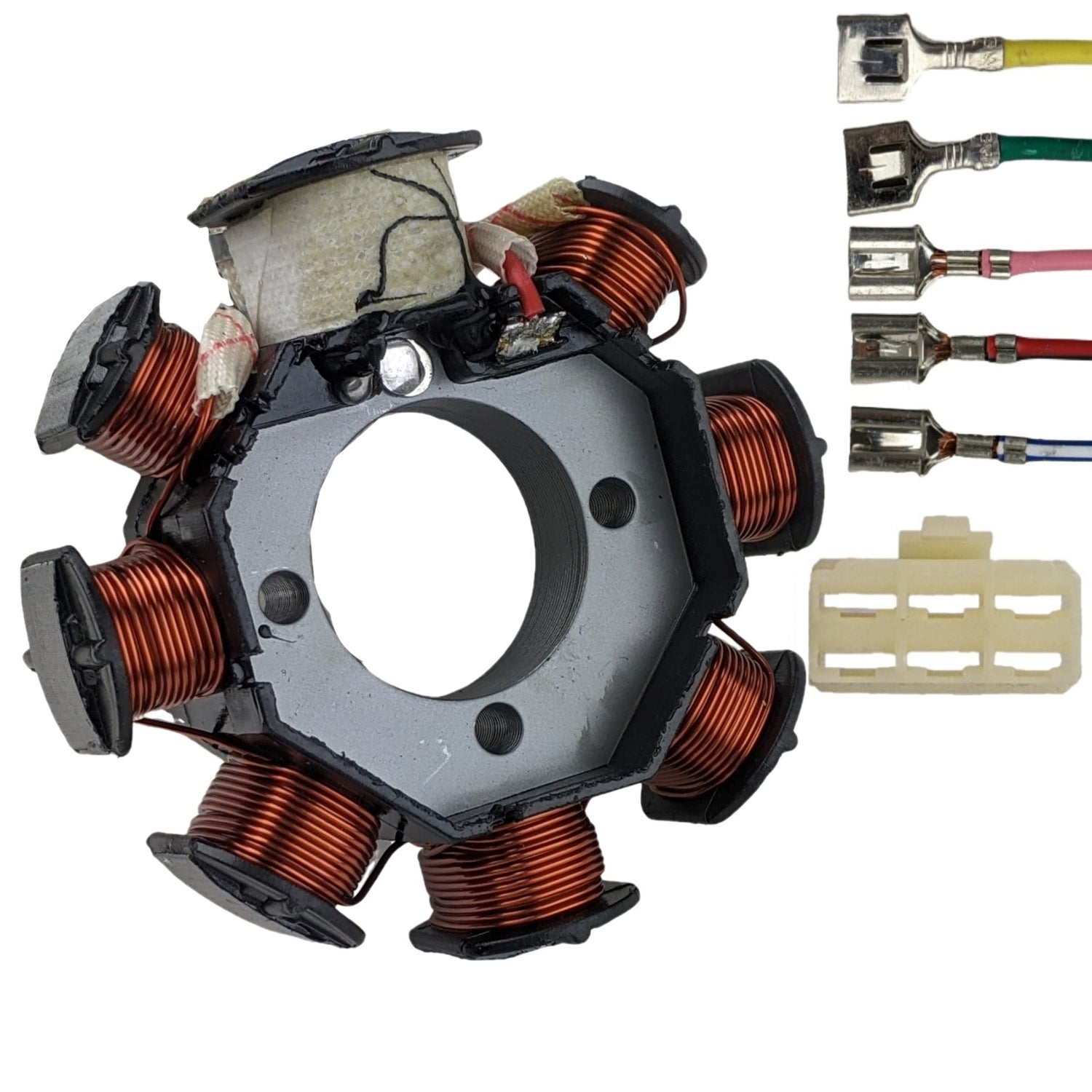

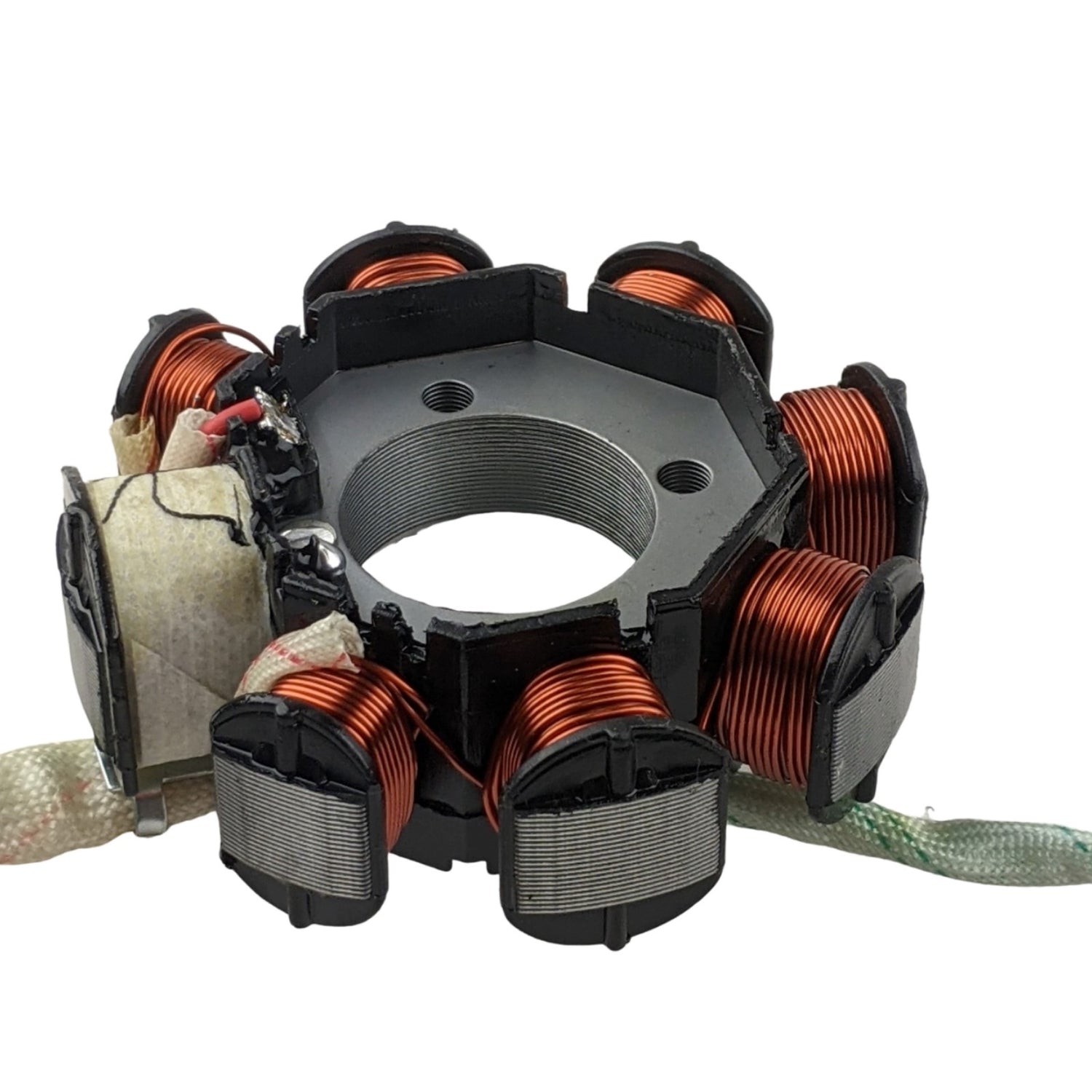

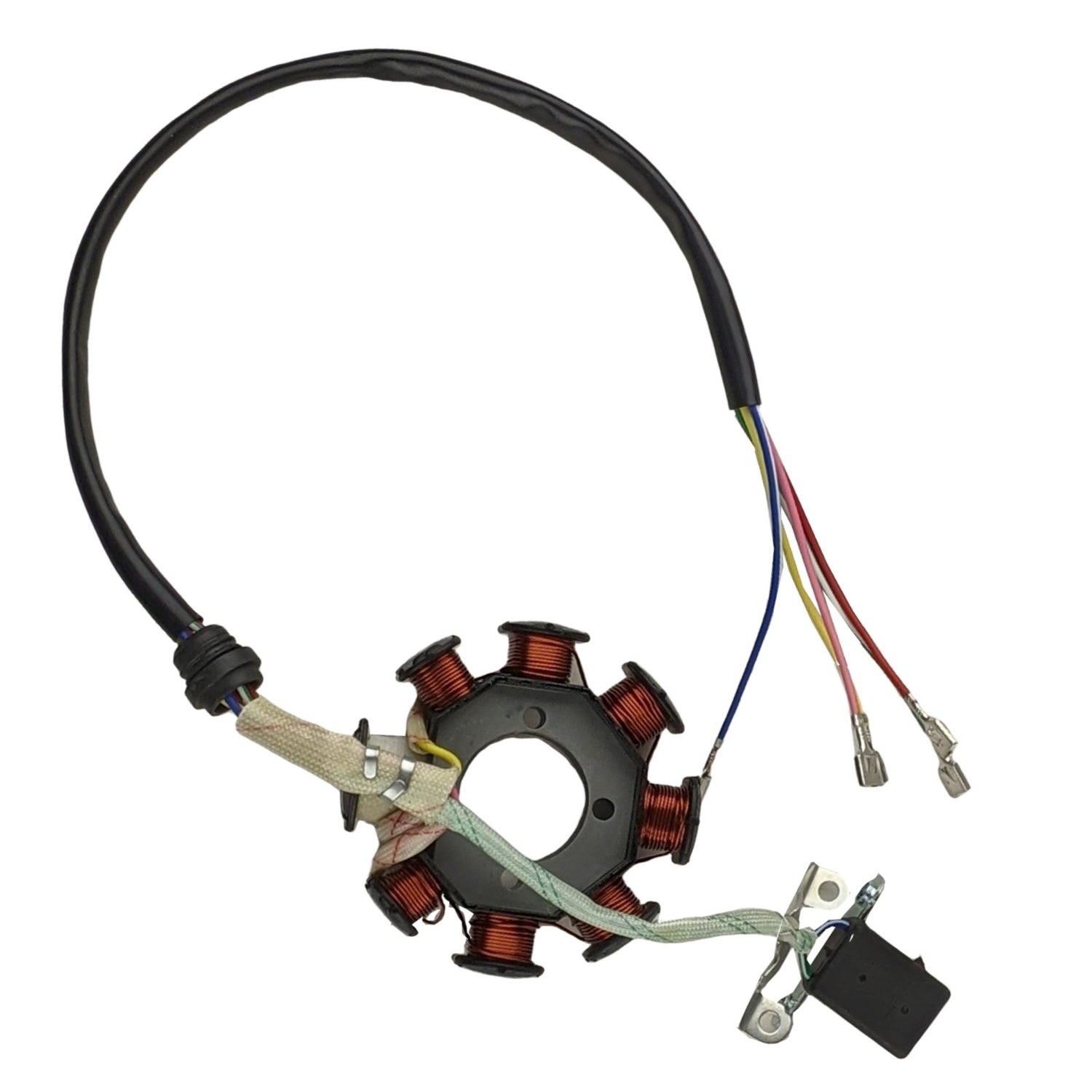

The RedCap 8-Coil Magneto Stator Plate is designed for high performance and versatility, making it an ideal replacement for a variety of 150cc to 250cc engines. This stator features eight coils, including one wrapped coil, and comes with a 5-wire harness with an overall length of 45cm (17.75 inches). It is equipped with a 2-wire pickup trigger, and mounting is facilitated through three bolts. The stator measures 88.6mm (3.49 inches) in overall diameter with a center hole measurement of 32mm (1.26 inches). The single coil height is 28.7mm (1.13 inches), and the wrapped coil height is 32.7mm (1.29 inches). Designed to fit most ATVs, dirt bikes, quad bikes, and go-karts, it also accommodates various Chinese scooter models, such as TaoTao, Buyang, Coolsport, Lifan, Kazuma, SUNL, Redcat, and Eagle.

This high-quality stator plate conforms to strict manufacturing standards, ensuring durability and dependable performance. It is suitable for vertical engines with a manual clutch and is known to fit models like Panther 200UT and Hawk 250. Its precision engineering allows for easy installation with a plug-and-play setup, making it an excellent choice for anyone looking to upgrade or replace their existing stator. The RedCap 8-Coil Magneto Stator Plate provides reliable operation and enhances the overall efficiency of your engine, delivering consistent power and performance across various applications.

• 8-Coil Stator Plate:  RedCap 8-Coil Stator Magneto Plate with Flywheel with a single wrapped coil design, 5 wires with a 45cm overall length, and 3 bolt mounting. Includes a 2-wire pickup trigger, with center hole and overall measurements of 32mm and 88.6mm respectively, ensuring efficient power generation.
• Universal Compatibility: RedCap 8-Coil Stator Magneto Plate Fits CG 125cc, 150cc, 200cc, 250cc 4-stroke ATVs, dirt Pit Pro Trail Bikes, quad dune buggies, go-karts, and scooters. Compatible with most chinese brands like Taotao , Sunl , Lifan Kazuma, Zongshen, Loncin, Xinyuan, Redcat, Eagle, Buyang, and Coolsport.
• High-Quality Manufacturing: The RedCap 8-Coil Stator Magneto Plate is crafted with premium materials to ensure superior performance and durability. Designed for reliable operation, it offers robust construction for long-lasting use, enhancing the efficiency of your system.
• Quality Assurance: The RedCap 8-Coil Stator Magneto Plate adheres to strict quality control standards, ensuring dependable performance and reliability. Ideal for upgrading or replacing your current stator, it provides a robust and efficient solution for motorcycle power needs.
• Easy Installing: The RedCap 8-Coil Stator Magneto Plate is designed for easy installation. Use a 27mmx1mm flywheel puller and socket set to remove the flywheel, replace the old stator plate with the new one, and secure it. Reinstall the flywheel, ensuring all connections are properly fitted.

Specification:

• Item Type: Magneto Stator Plate 8 Coil - 1 Wrapped, 3 Bolt Mounting
• Item Weight: ?1.03 pounds
• Package Dimensions: ?9.49 x 6.5 x 2.17 inches
• Vehicle Service Type: ATV, Scooter, Dirt Bike
• Installation Type: Bolt-On
• Connector Gender: Female-to-Male
• Installation Type: Clamp-On
• Pick up trigger: 2 wire

Product Dimensions:

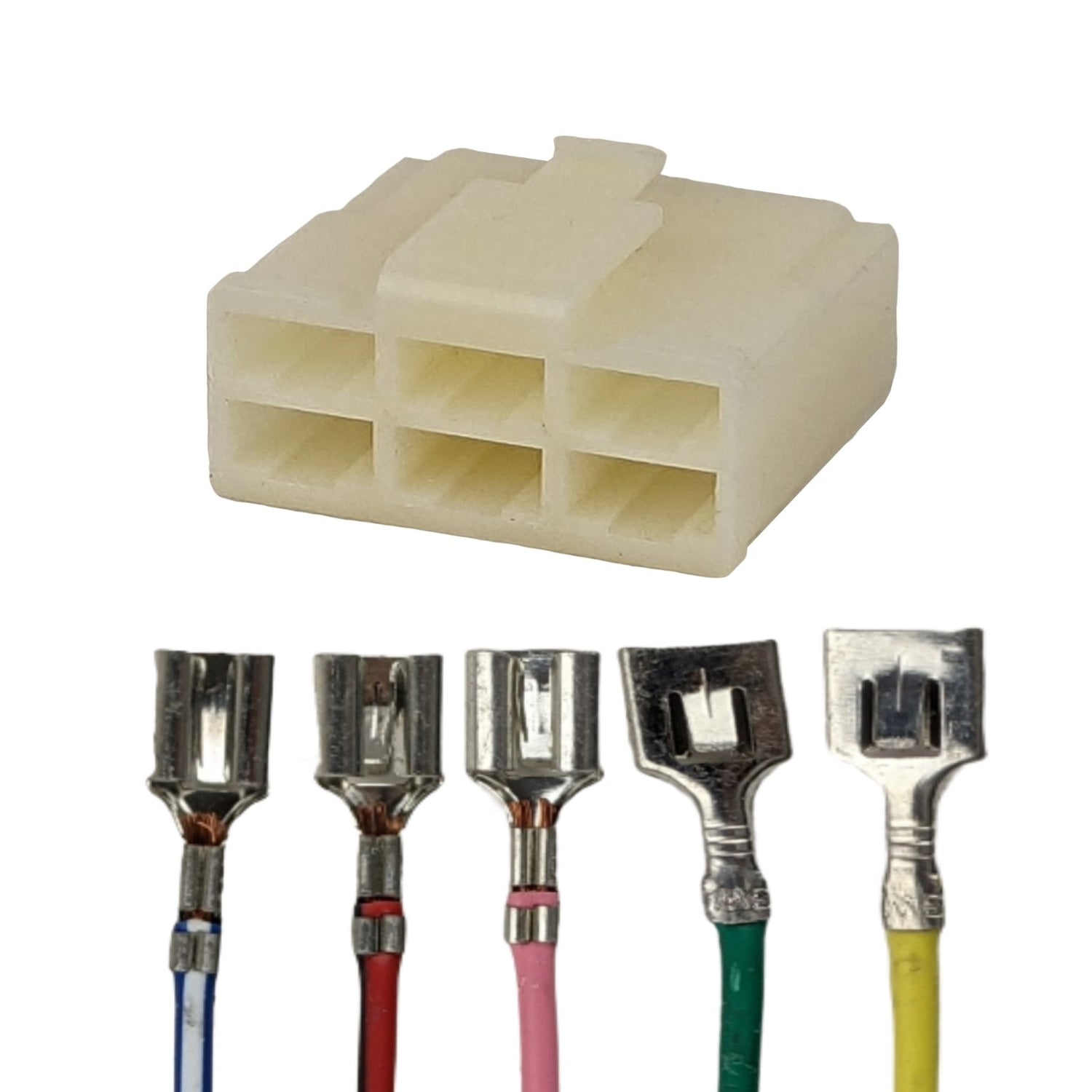

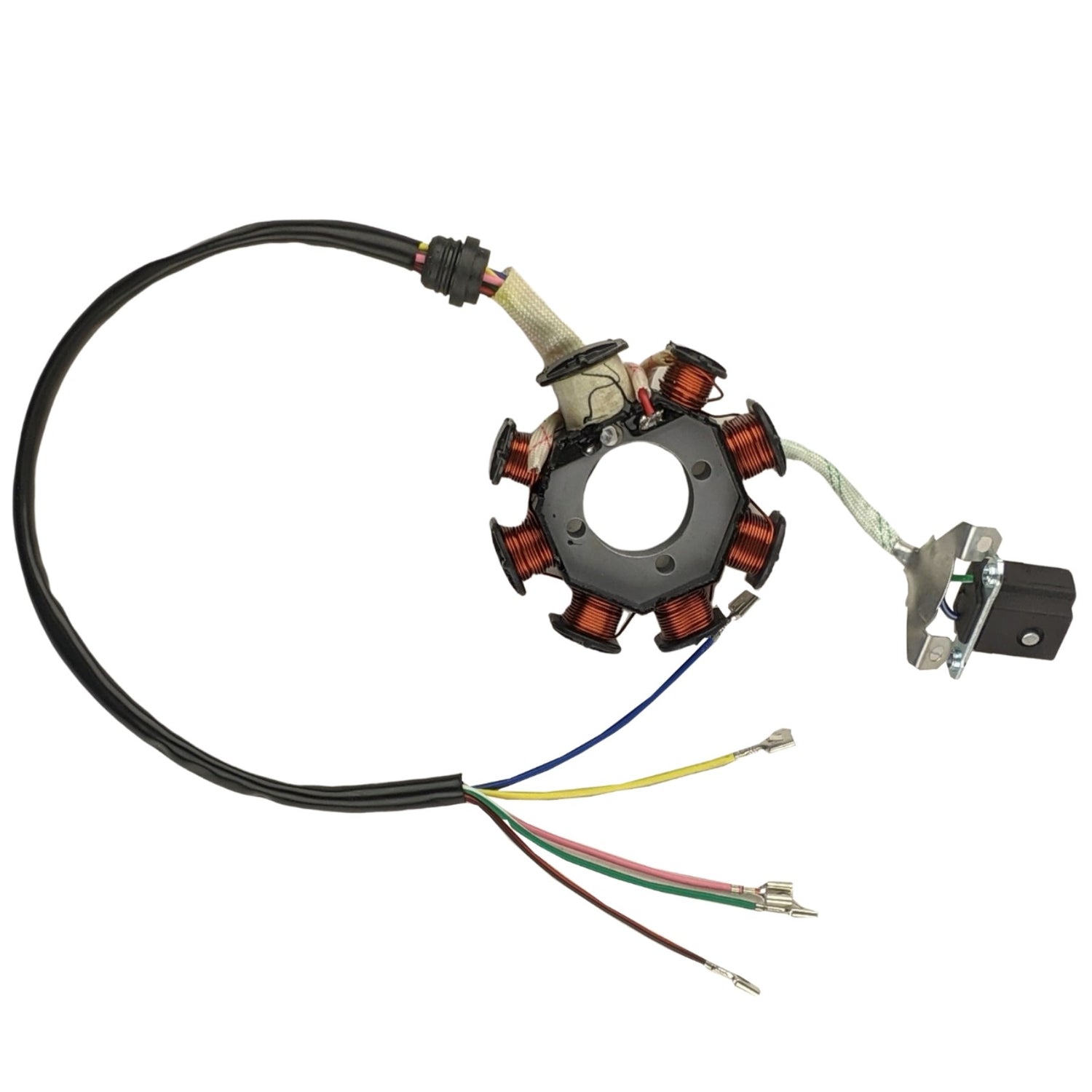

• 5 wires - 45cm [17.75"] overall length
• Center hole measurement: 32mm [1.26"]

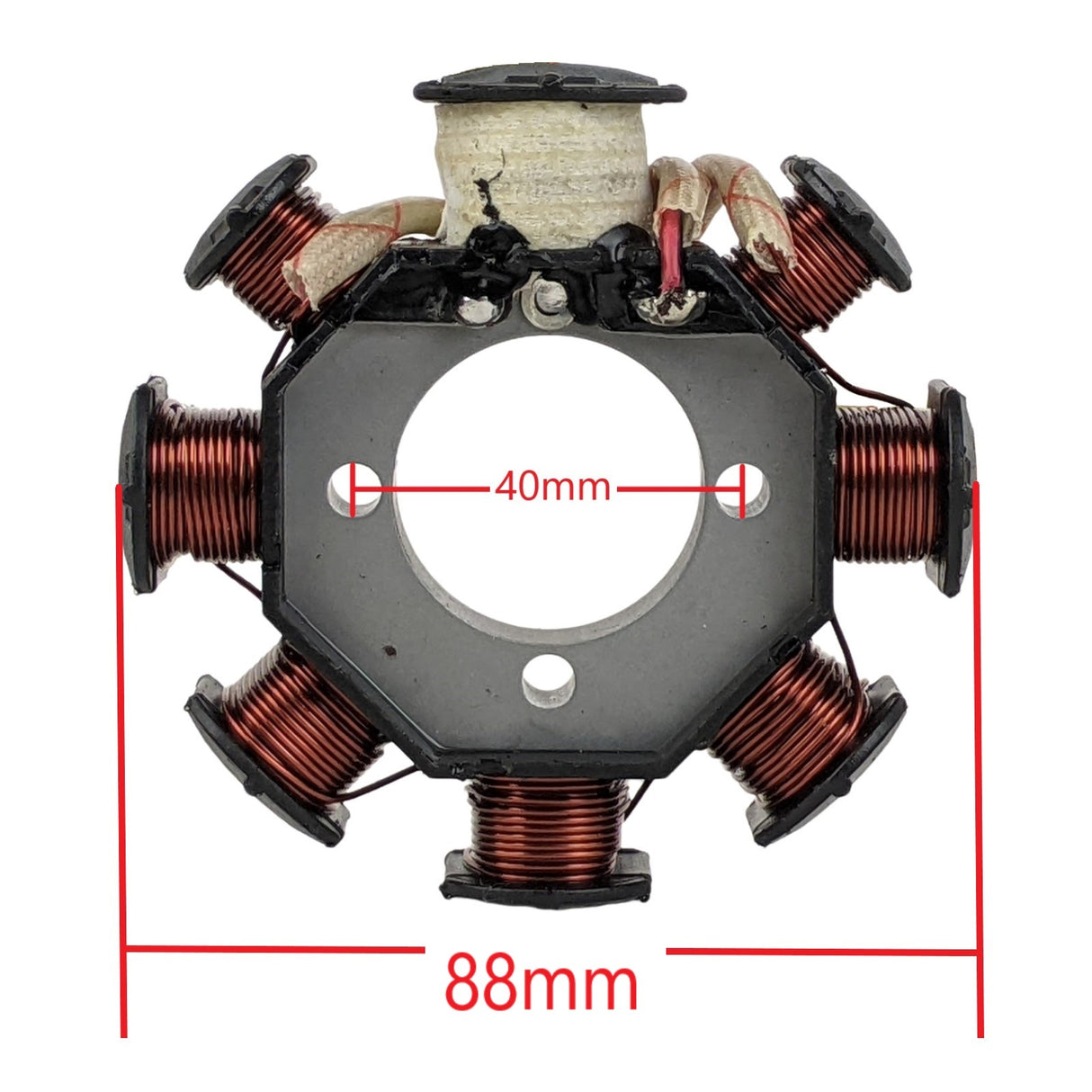

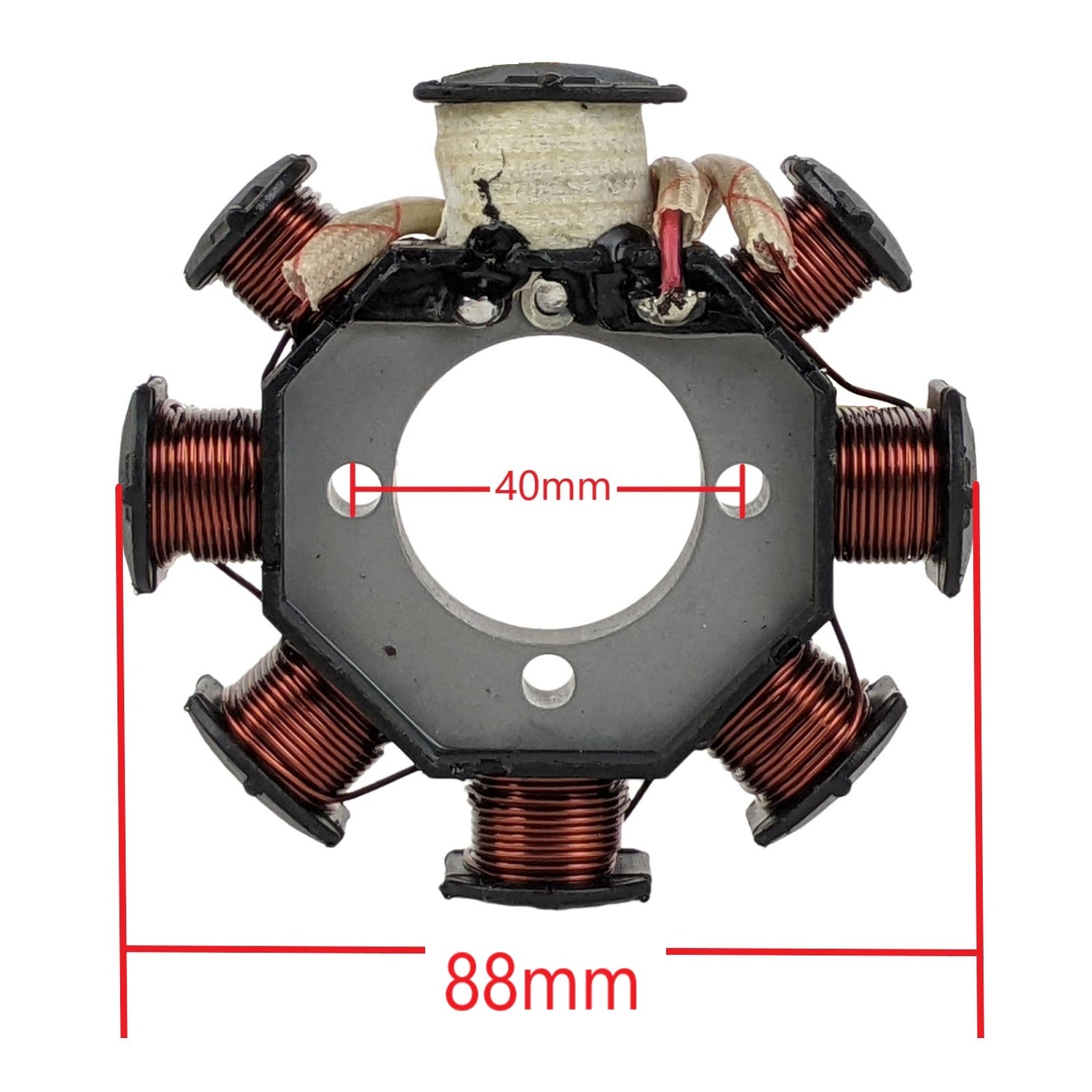

• Overall measurement: 88.6mm [3.49"]

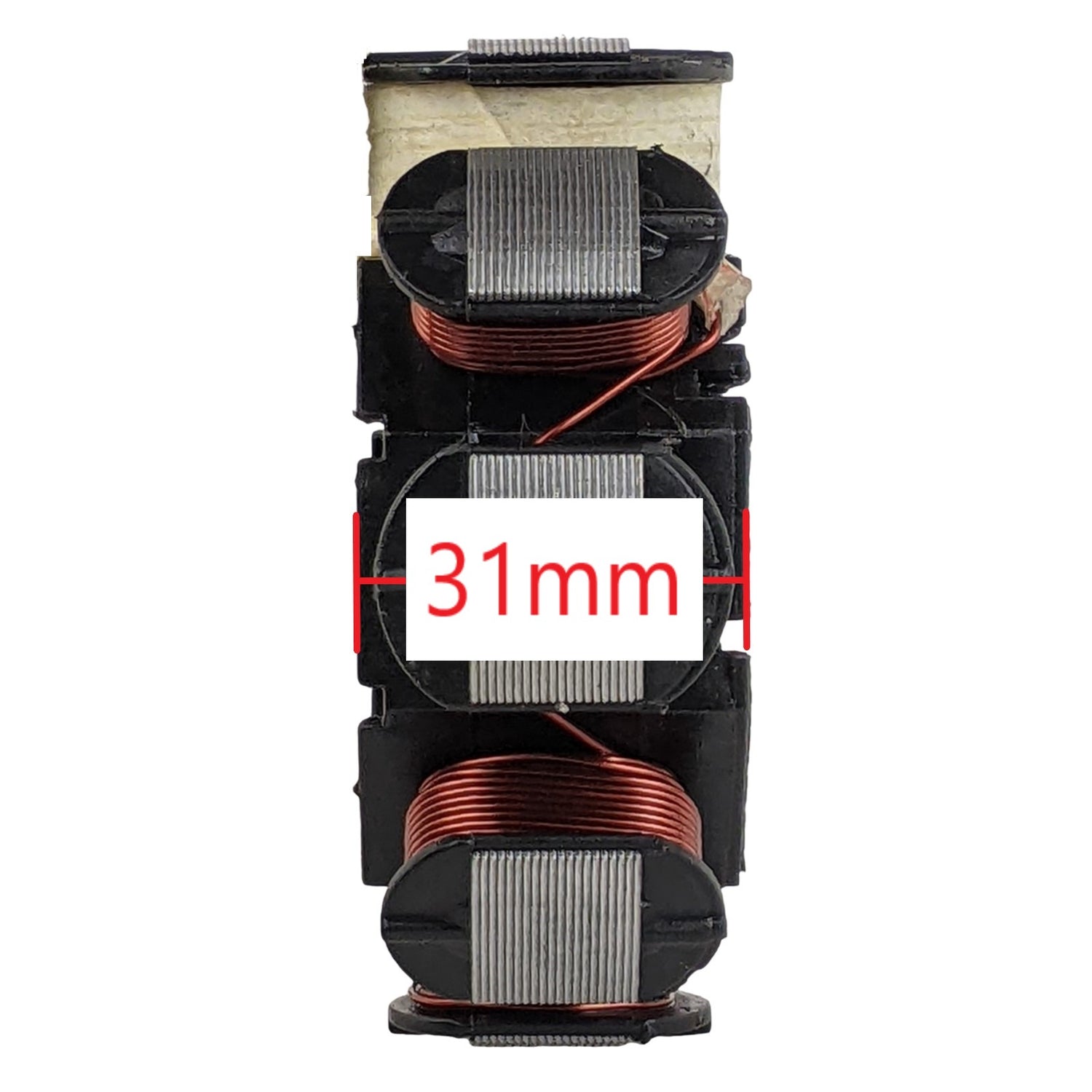

• Single coil height: 28.7mm [1.13"]
• Wrapped coil height: 32.7mm [1.29"]
• Mounting measurement: center-to-center across 40mm [1.575"]
• Mounting measurement: center-to-center diagonally 28.5mm [1.125"]

Note: Please check pictures and specifications for compatibility.
