Stator Ignition Magneto Plate 2 Coil 5 Wires Plug for 4 stroke DB 007 DB X5 X7 X18 JH70 50cc-125cc Apollo Dirt Pit Bike

Chinese Stator Magneto - 2 Coil - 5 Wire for Apollo Dirt Bike Pit Bike DB 007 DB X5 X7 X18 50cc-125cc

 Fits Chinese 50cc-125cc Apollo Dirt Bikes.

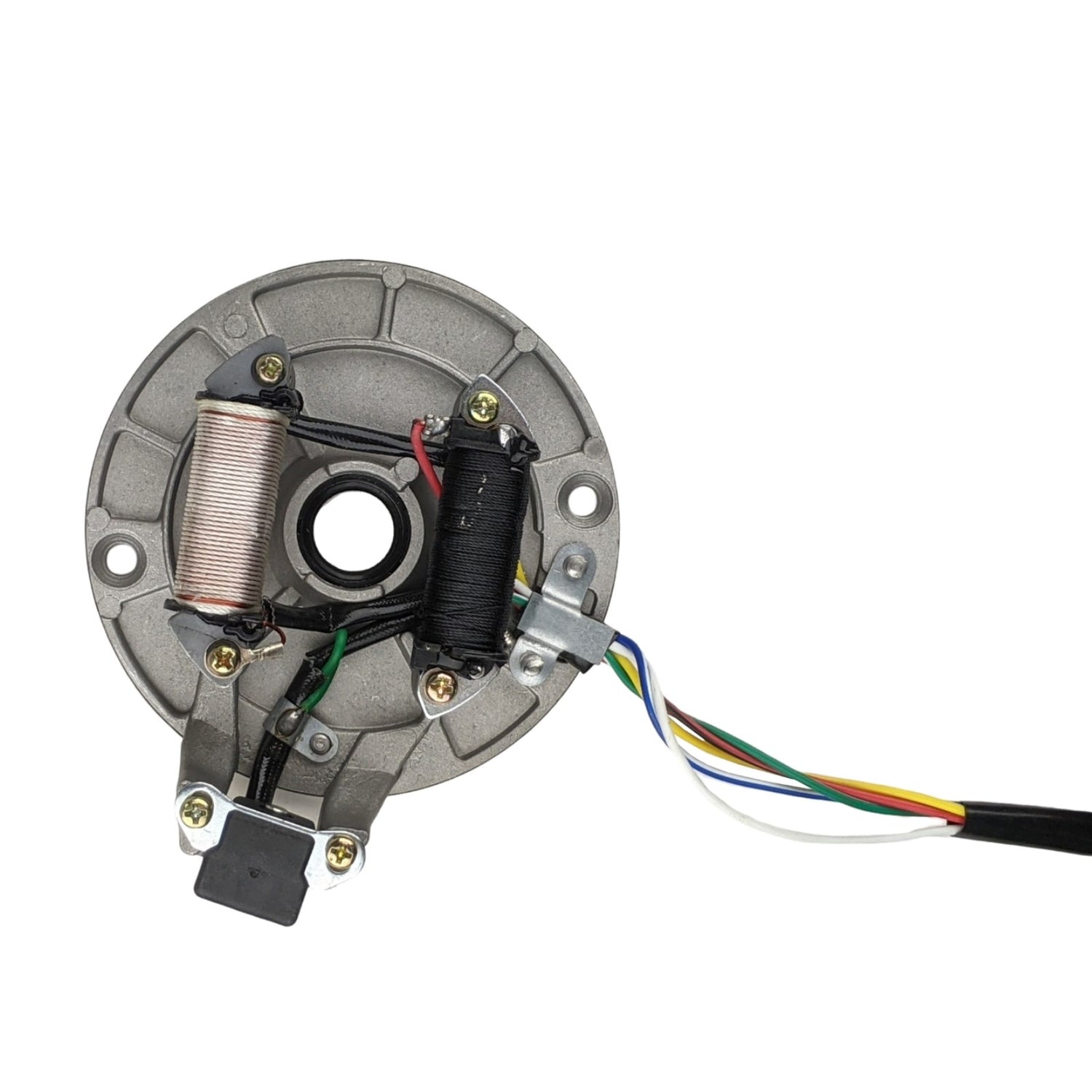

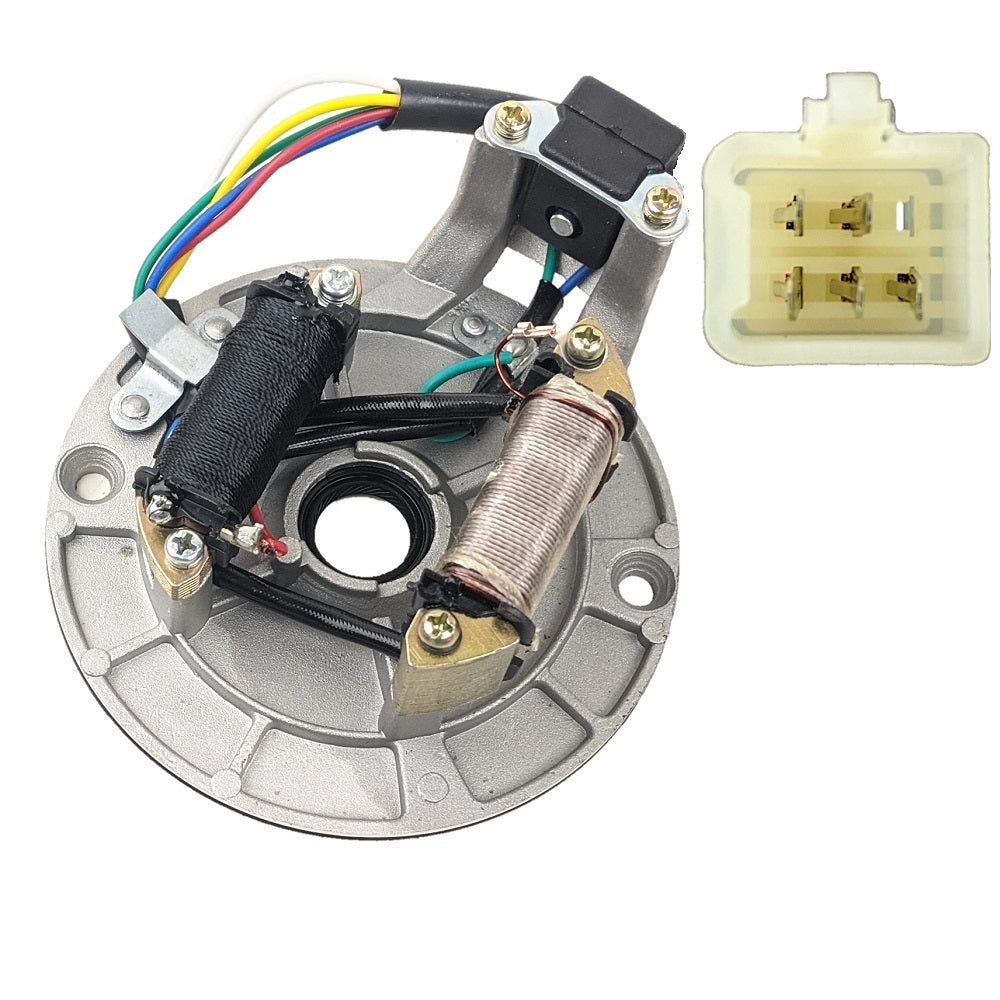

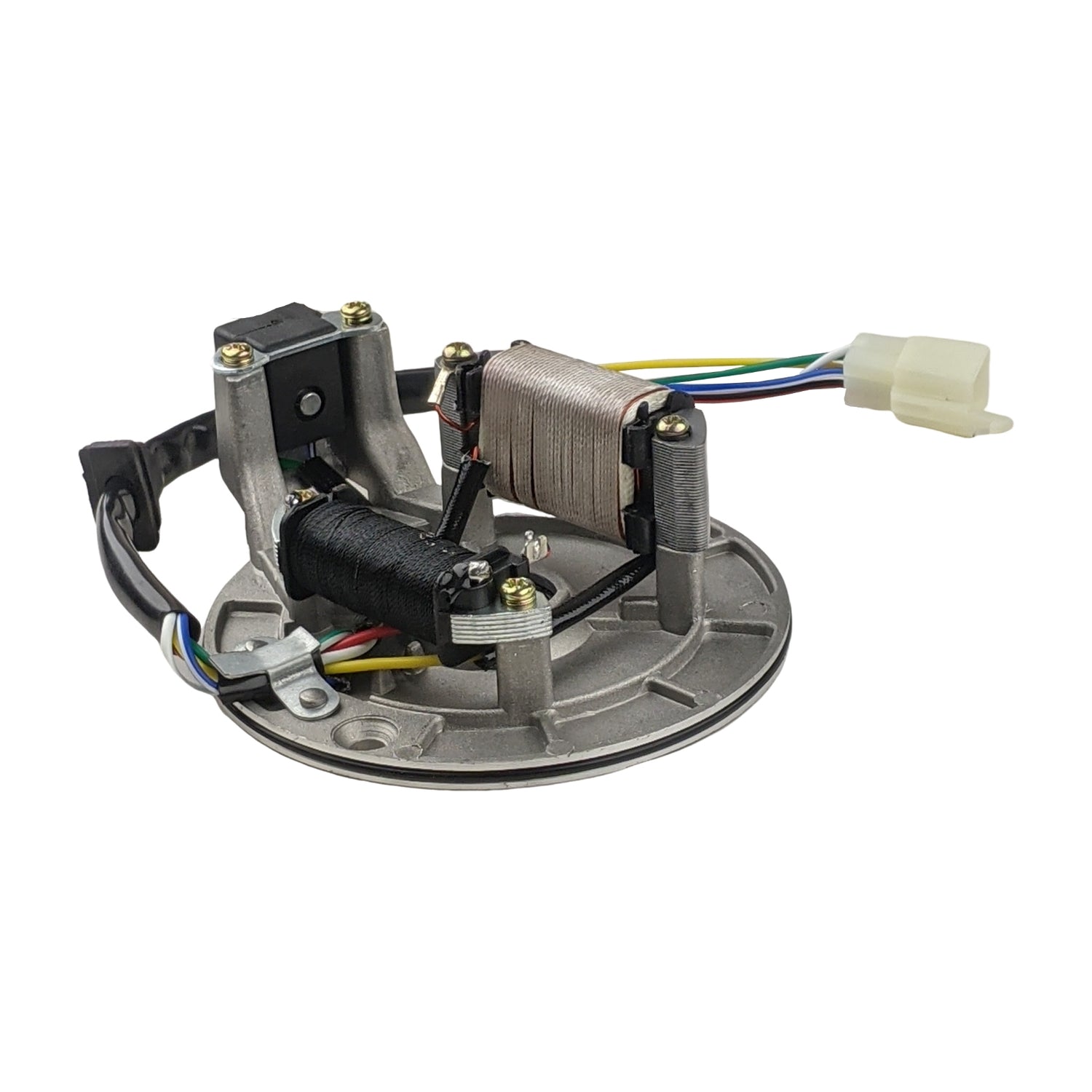

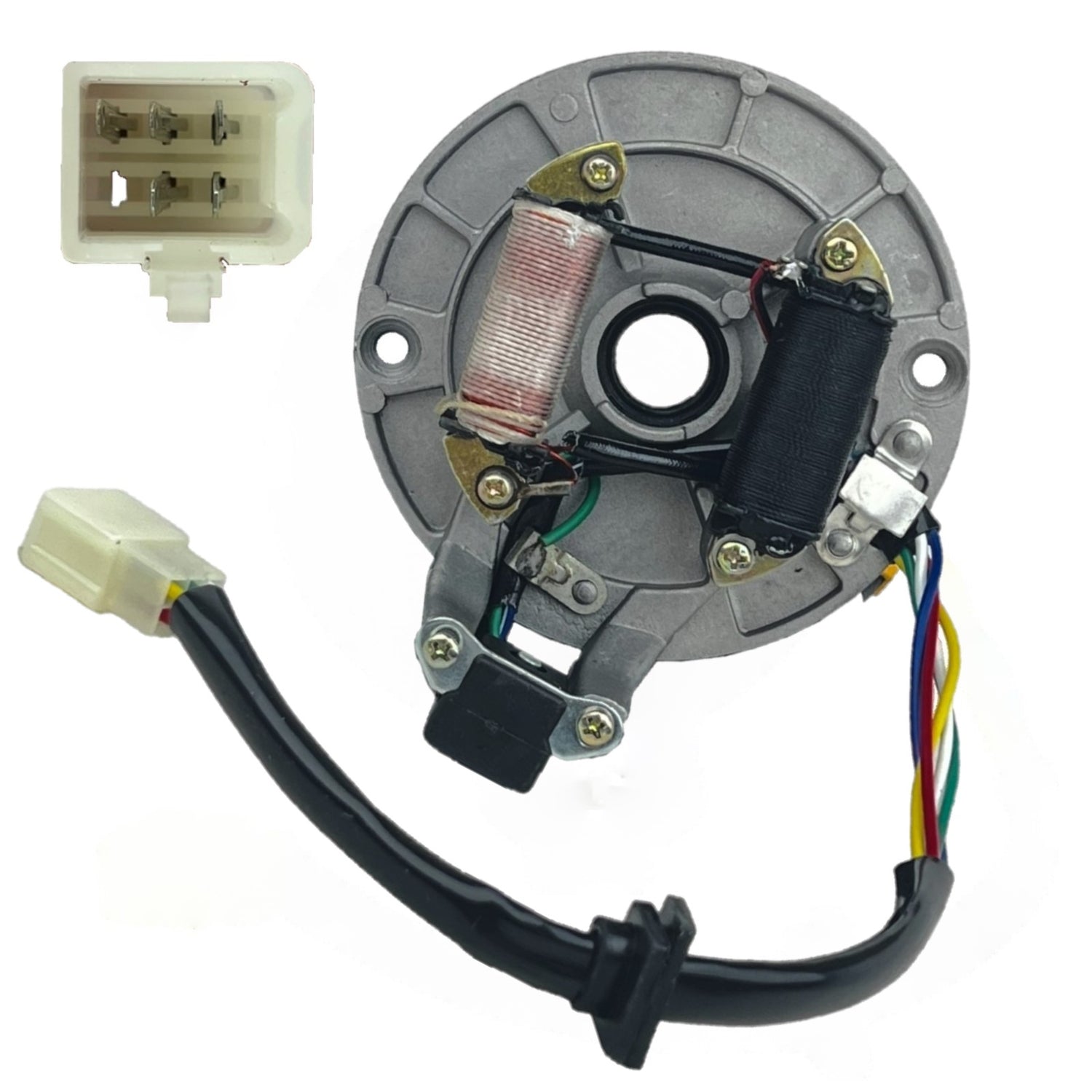

The RedCap 2 Coil Stator Ignition Magneto Plate is specifically designed for 50cc-125cc Chinese dirt bikes, pit bikes, and ATVs, including models like Apollo DB 007, DB X5, X7, X18, and JCL. This high-quality stator features a 5-wire plug with a single male connector, providing reliable ignition and charging capabilities for various 4-stroke engines. With its robust construction, the stator ensures efficient power generation and consistent performance across a range of applications.

Measuring 115mm in outside diameter and 47mm in width at the pickup, this stator includes two coils and features precise bolt-hole spacing of 102mm with a 7mm diameter. It is designed to fit seamlessly on multiple models, including the DB-21, DB-25, DB-34, DB-X4, DB-35, DB-99, DB-007, DB-X5, DB-X7, and DB-X18. The stator is equipped with a new charging magneto and includes a pickup, making it an essential upgrade or replacement for maintaining optimal engine performance and reliability.

• Compatibility for 50cc-125cc Models: The RedCap 2 Coil Stator Ignition Magneto Plate is designed to be compatible with a wide range of 4-stroke 50cc to 125cc Chinese engines. It fits various models including Apollo Dirt Bikes, Pit Bikes, Taotao, Sunl, JCL, and many Chinese ATVs, Quads, and Go-Karts.
• Reliable 2-Coil Design: Featuring a 2-coil setup, this stator magneto plate provides efficient power generation and consistent ignition performance. The design is tailored to meet the needs of standard 4-stroke Chinese engines, making it a dependable replacement part for maintaining engine reliability.
• Specifications: The RedCap 2 Coil Stator Ignition Magneto Platelate with 5 Wires Plug features an outside diameter of 115mm and an inside diameter of 18mm, with a width of 47mm at the pickup. It has a bolt-hole spacing of 102mm and a bolt-hole diameter of 7mm, accommodating different engine sizes.
• High-Quality Construction: The RedCap 2 Coil Stator Ignition Magneto Constructed to meet rigorous standards, this stator magneto plate is built with durability in mind. Its robust design ensures long-lasting performance and reliability, even under the demanding conditions of off-road and high-use applications.
• Easy Installation: Designed for straightforward replacement, this stator magneto plate includes all the necessary components for a hassle-free installation. The unit includes a 5-wire single male plug and comes with a pickup for easy installation. This part is specifically for 2-coil setups.

Product Details:

• Type: 2 Coil Stator Magneto
• Outside Diameter: 115mm
• Inside Diameter: 18mm

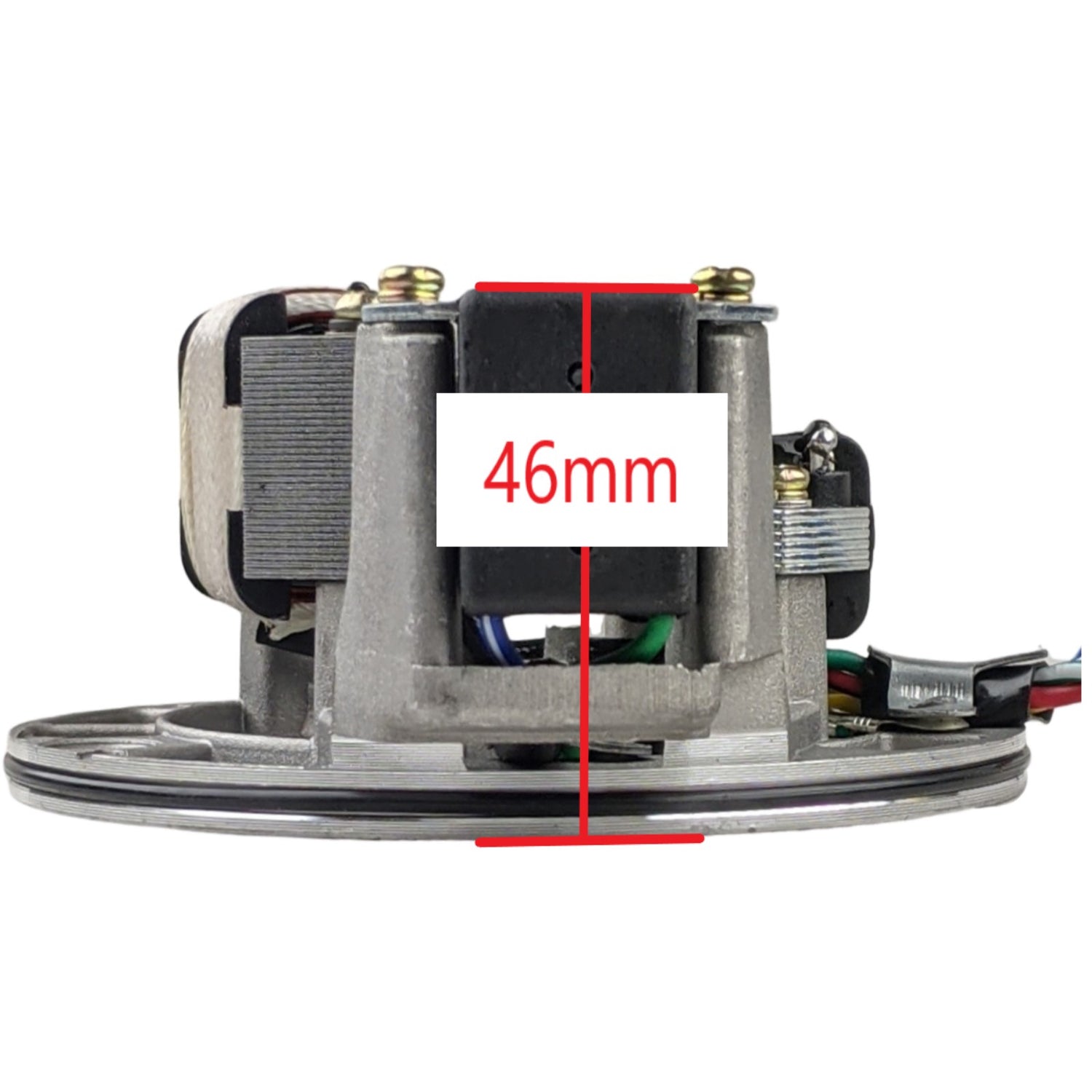

• Width: 47mm at pick up
• Bolt Hole Spacing: 102mm
• Bolt Hole Diameter: 7mm
• Number of Coils: 2

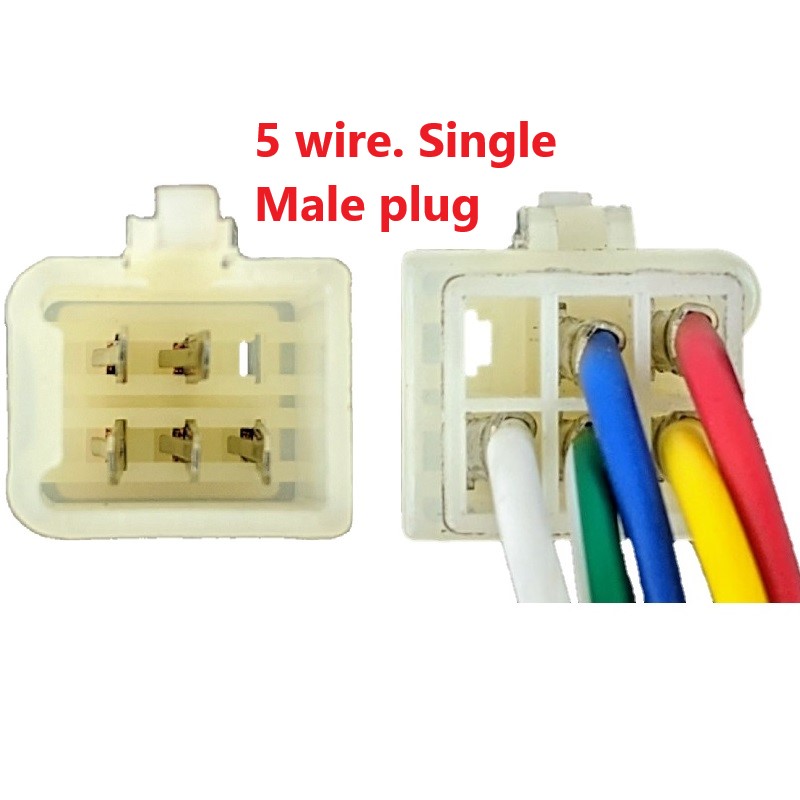

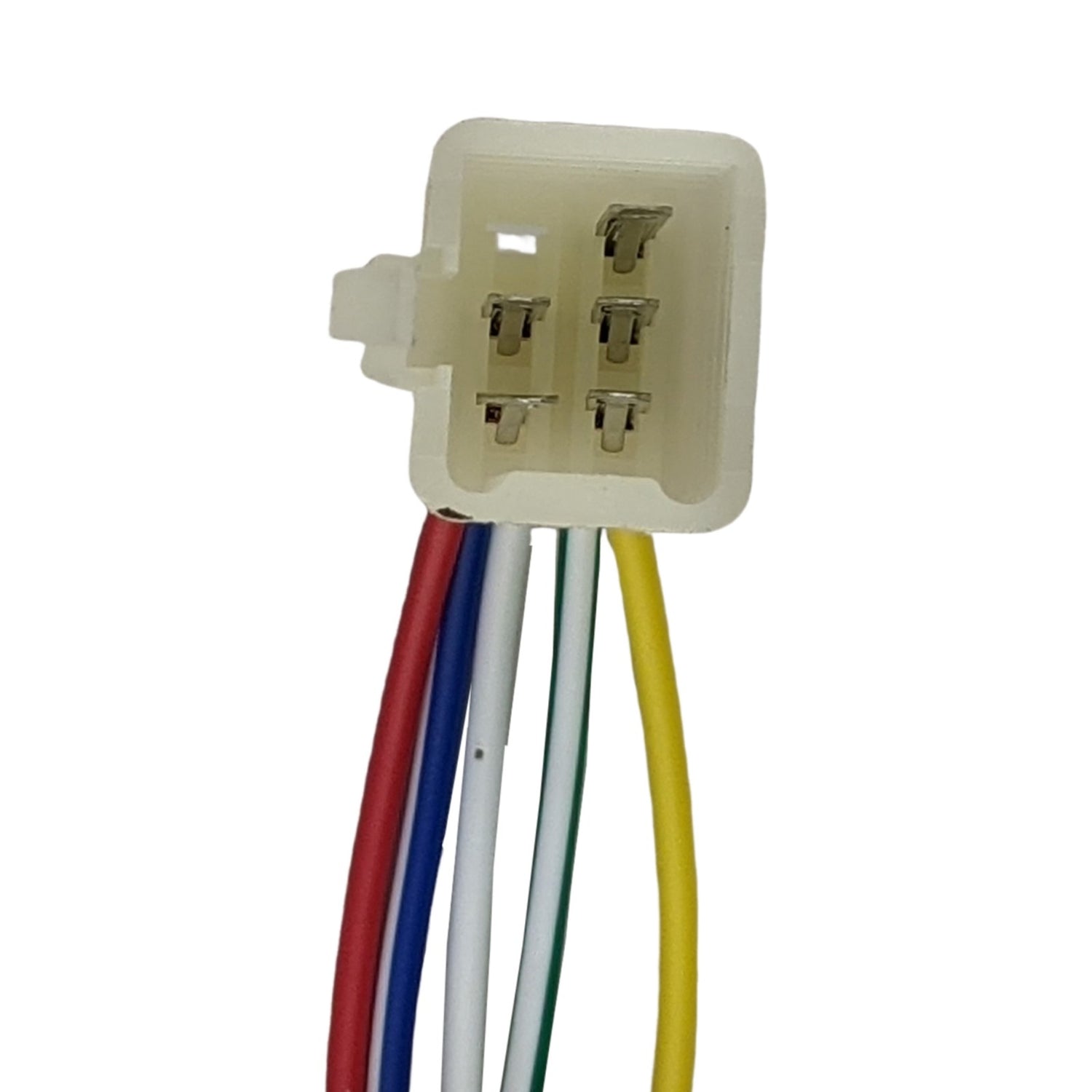

• 5 wire: Single Male plug
• includes Pick up

Fits:

• DB-21 70cc (DB25)
• DB-25 70cc ((DB25)
• DB-34 110cc (DB34)
• DB-X4 110cc
• DB-35 125cc
• DB-99 125cc (DB99)
• DB-007 125cc (DB 007)
• DB-X5 125cc (DB-X5)
• DB-X7 125cc (DB-X7)
• DB-X18 125cc

Note: Some 007 Dirt Bikes may contain a 6-pole stator. Please check your stator to ensure it is the same as pictured above.
