17 Tooth Crankshaft Assembly for GY6 170cc Short Case Engines with Internal Reverse
17 Tooth Crankshaft Assembly for GY6 170cc Short Case Engines with Internal Reverse is backordered and will ship as soon as it is back in stock.
Pickup currently unavailable at 2875 N Berkeley Lake Rd NW, Suite 4
Not sure? Text or email a photo of your old part or your engine model number. We'll confirm it fits before you buy.
Delivery and Shipping
Delivery and Shipping
Ships from our Duluth, Georgia warehouse.
Most in-stock orders ship the same business day. UPS orders placed before 3:00 PM ET, USPS orders before 12:00 PM ET. After the cutoff, they go out the next business day.
Standard delivery runs 2 to 6 business days to most US addresses. US territories take 7 to 14. These are carrier estimates, not guarantees.
Free shipping on most parts, no minimum order. Oversized items (body kits, wheels, tires, batteries, and engines) are quoted to your address and shown at checkout before you pay.
We ship UPS and USPS, and email your tracking number as soon as the order leaves.
Questions? Call or text 404-532-9833. Full details on our Shipping page.
17 Tooth Crankshaft Assembly for GY6 170cc Short Case Engines with Internal Reverse is backordered and will ship as soon as it is back in stock.
Description
Description

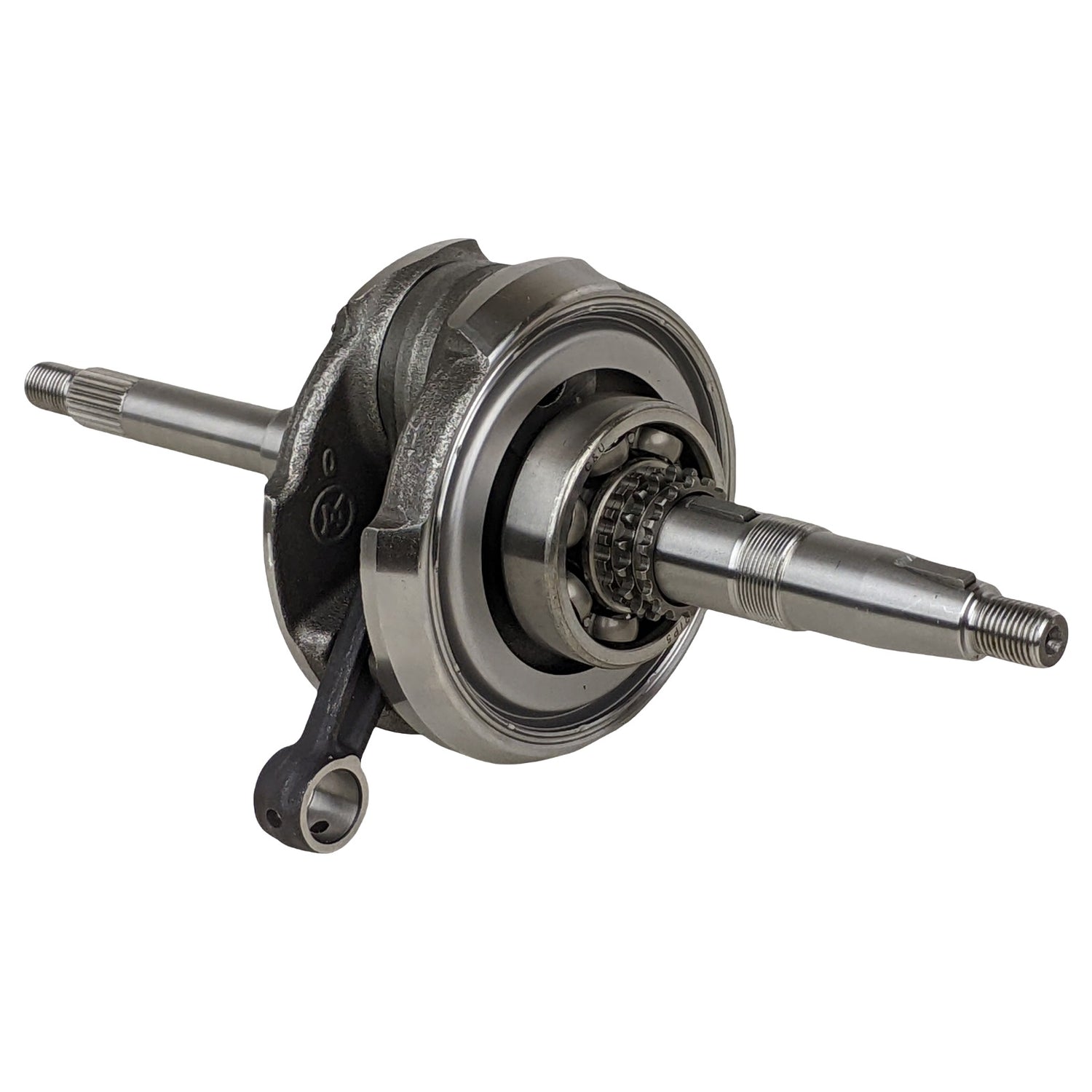

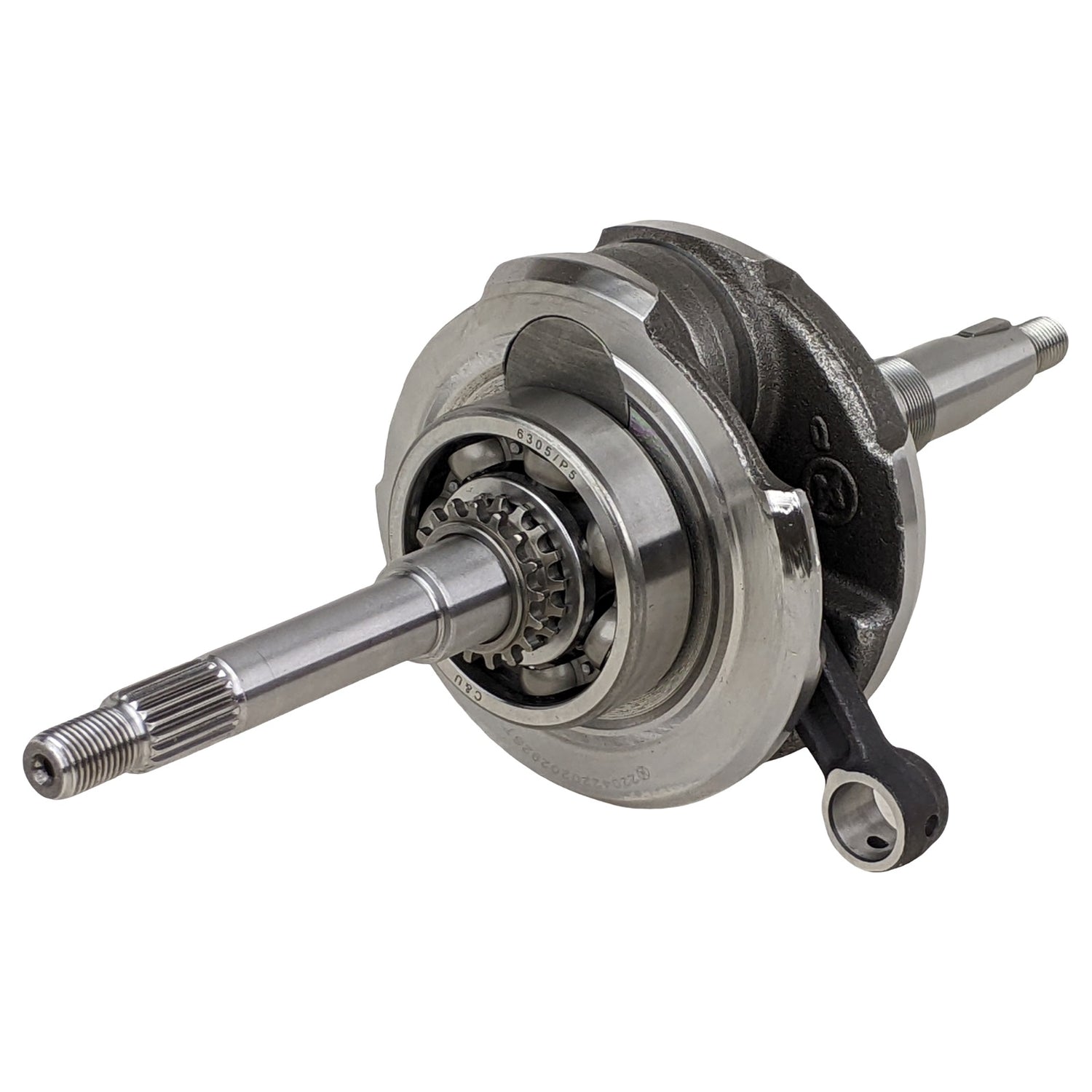

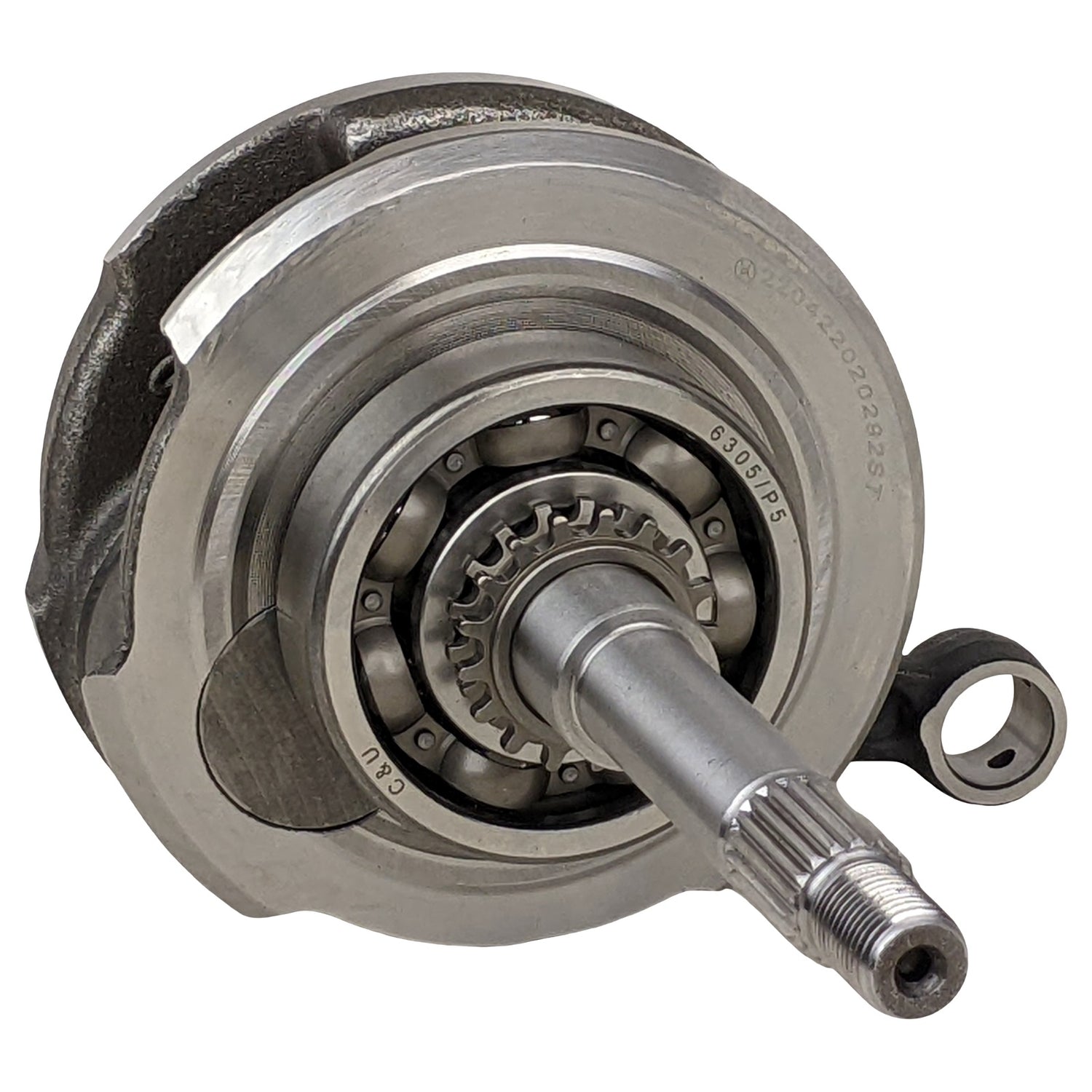

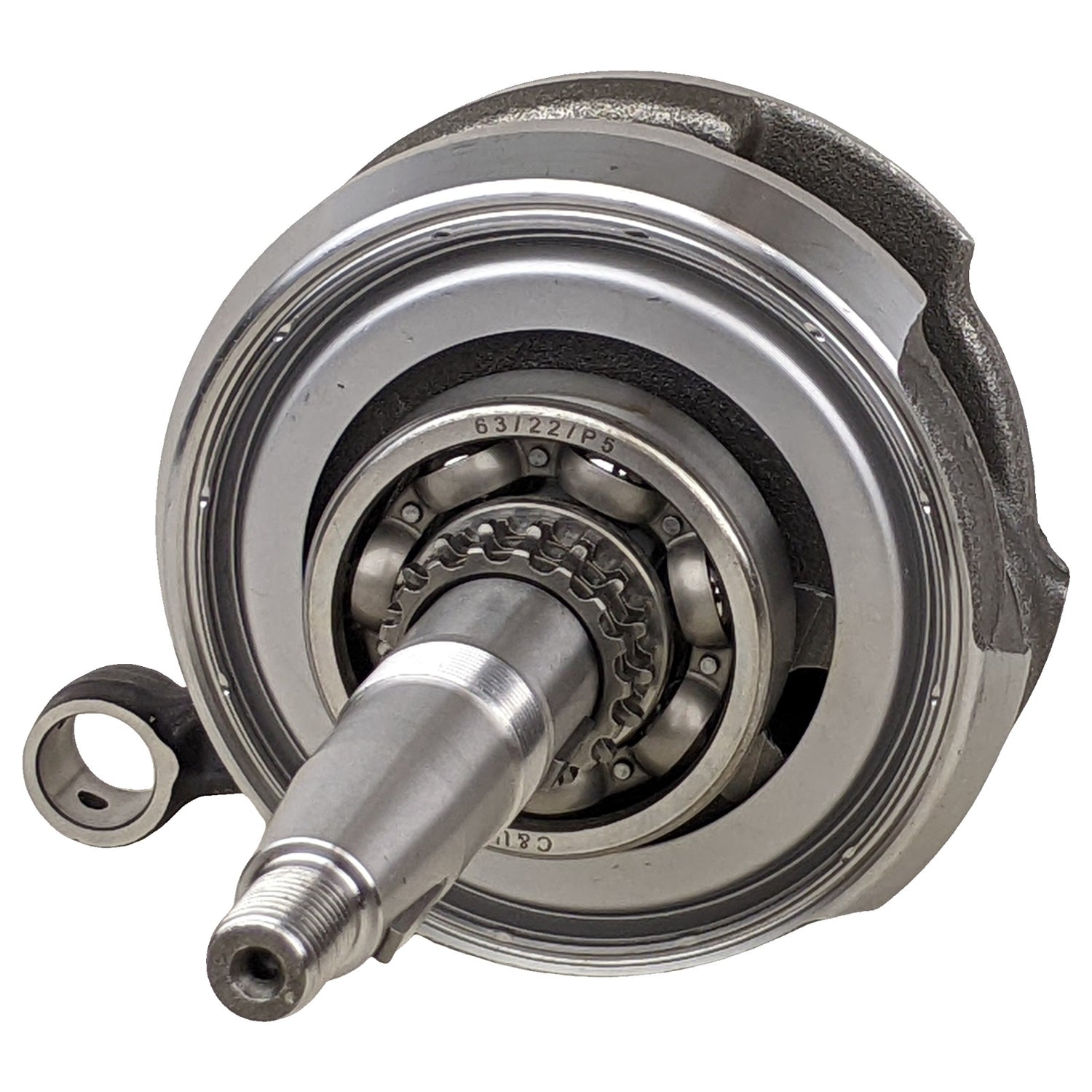

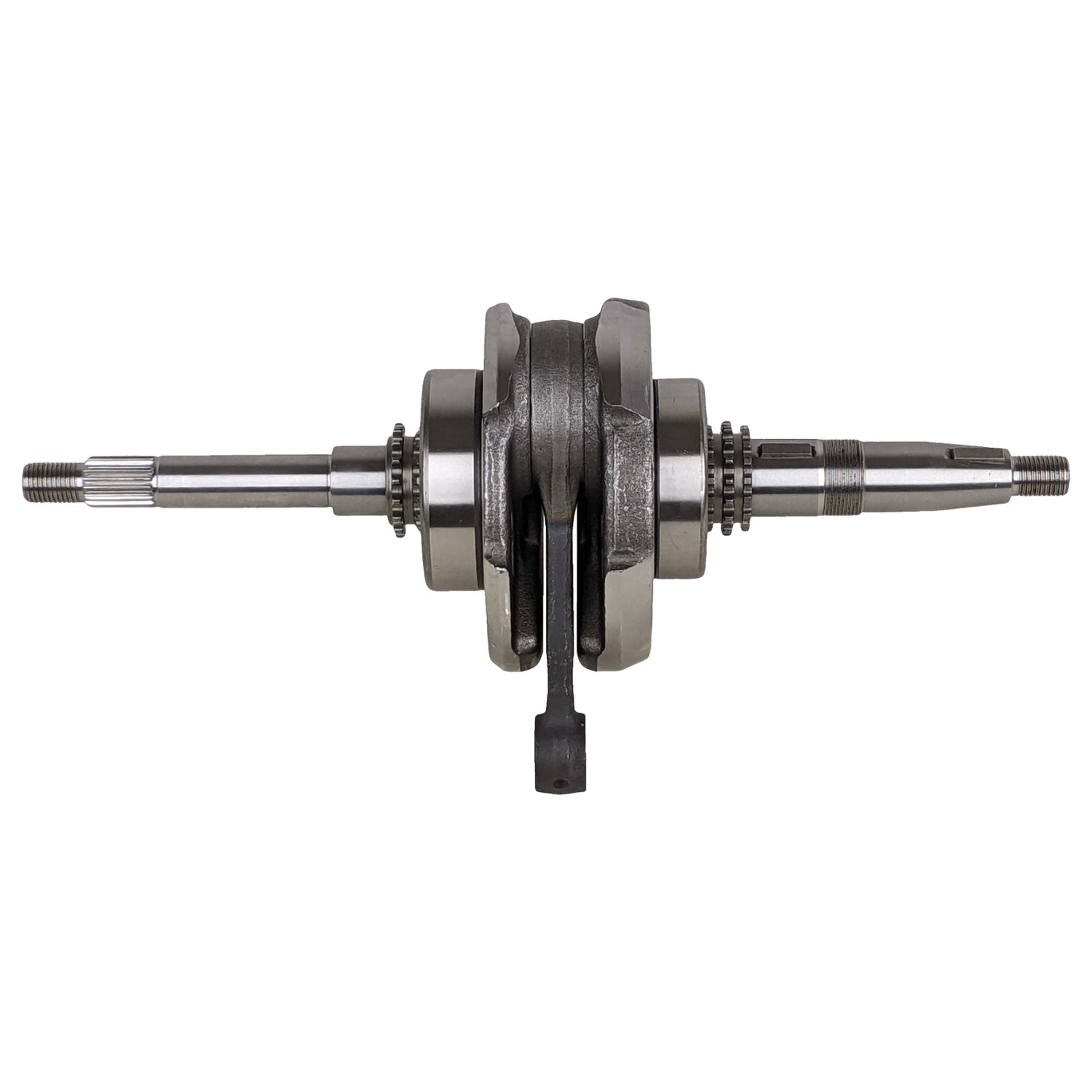

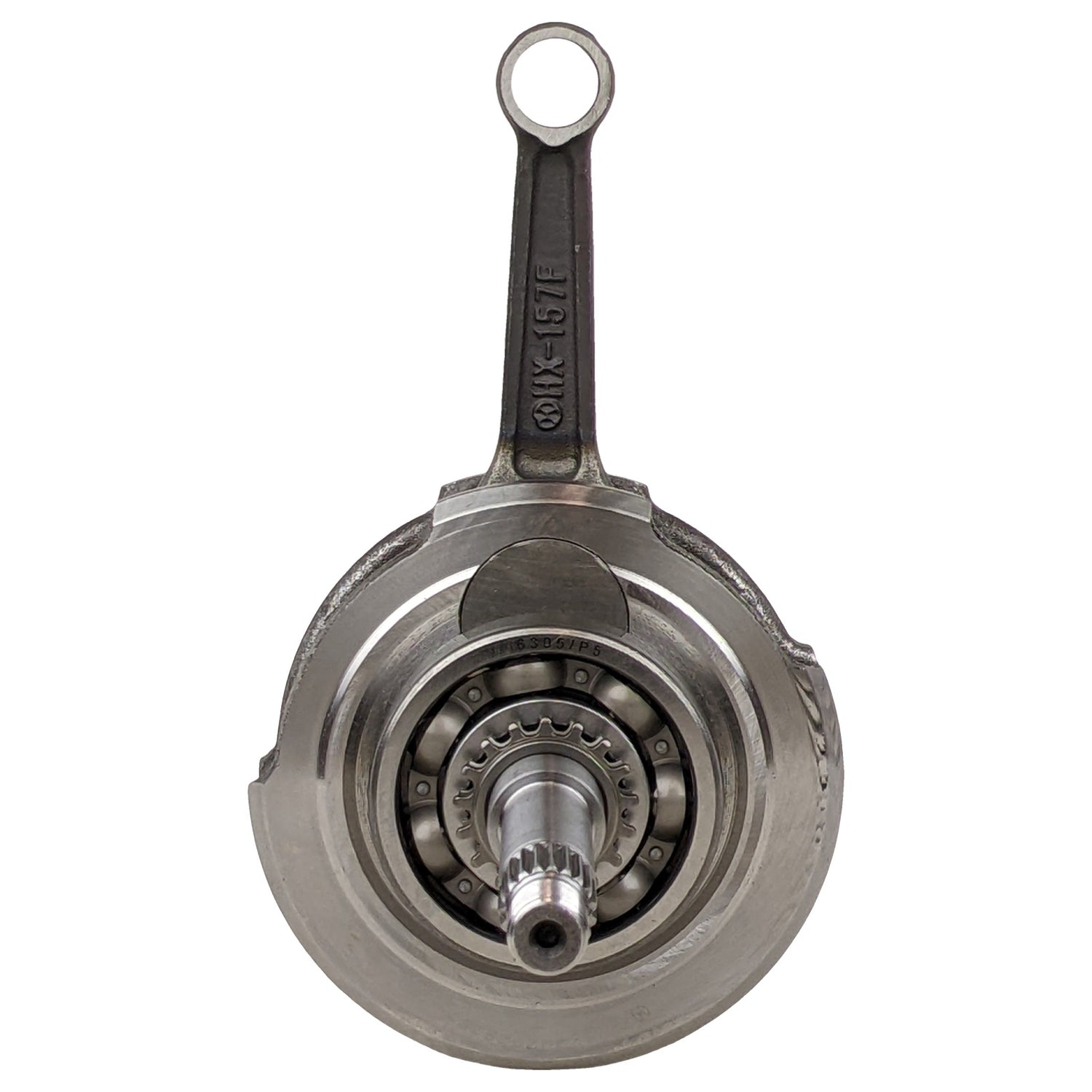

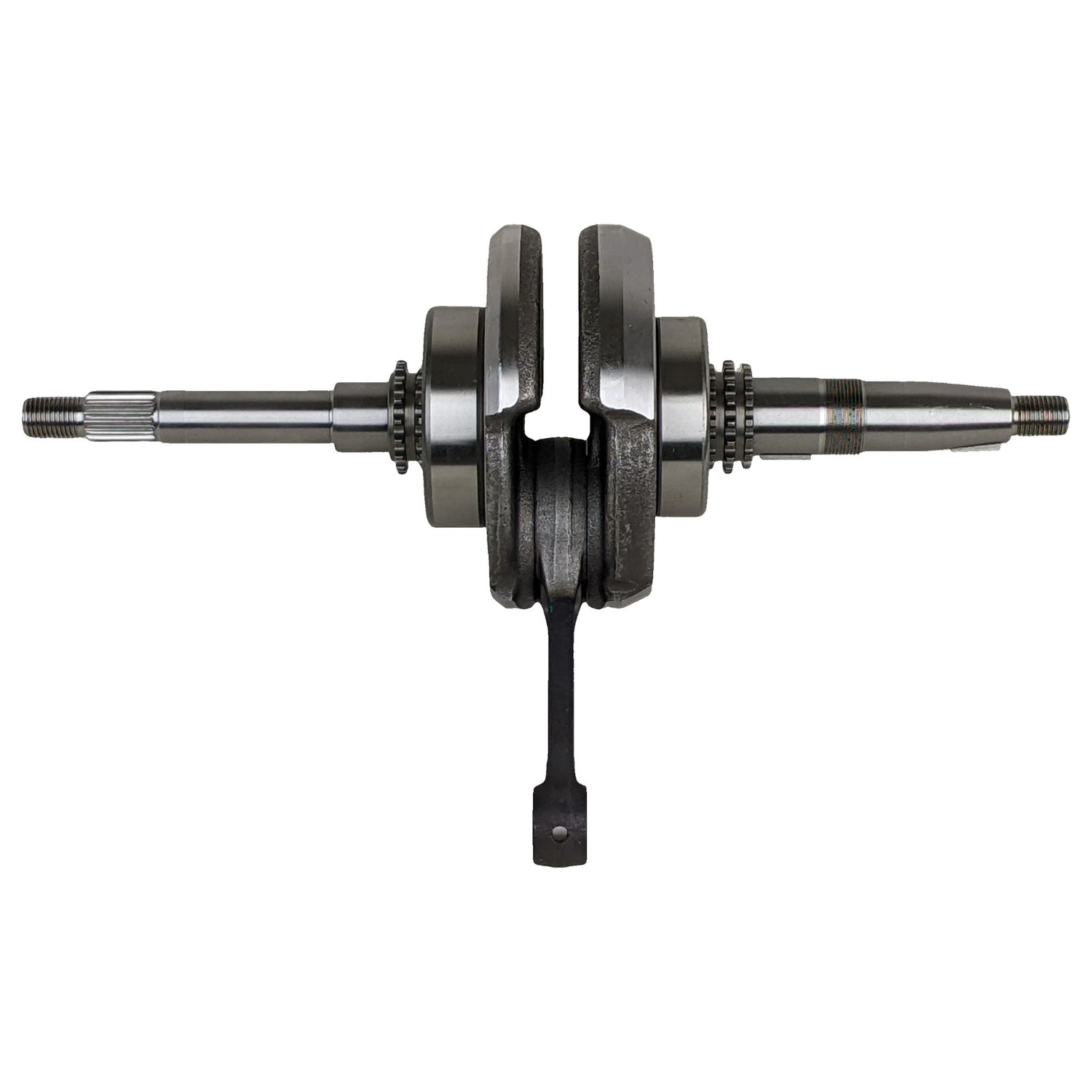

The RedCap Crankshaft Assembly is meticulously designed to fit the GY6 170cc Short Case engine with internal reverse, ensuring compatibility and optimal performance. Featuring a crankshaft arm inside diameter of 15mm and sprocket details including a 17-tooth level sprocket and a wide level sprocket with 17 teeth, along with a thin level spline boasting 19 teeth, this assembly provide accurate operation. With an overall length of 287mm and thread sizes of M12x1.25 for both the flywheel and drive end, installation is straightforward. Additionally, main bearings marked 62/22x2 are included, with inner and outer diameters of 22mm and 56mm respectively, providing durability and reliability.
- Engine Compatibility: Tailored for GY6 170cc Short Case engines with internal reverse, ensuring seamless integration and optimal performance. As a reliable replacement for your old or damaged crankshaft assembly, installation is quick and easy for added convenience.
- Specifications: Crankshaft arm inside diameter of 15mm, level sprocket with 17 teeth, and wide level sprocket/thin level spline with 17/19 teeth respectively, provide compatibility with various engine components.
- Dimensions and Threads: With an overall length of 287mm, flywheel thread size of M12x1.25 (14mm length), and drive end thread size of M12x1.25 (12mm length), this assembly offers accurate fitment and attachment.
- Included Main Bearings: Comes complete with main bearings marked 62/22x2, featuring an inner diameter of 22mm and outer diameter of 56mm, providing smooth and reliable operation.
- Construction: Crafted from aluminum alloy, this crankshaft assembly boasts durability and resilience, ready to withstand the rigors of engine operation for long-lasting performance.

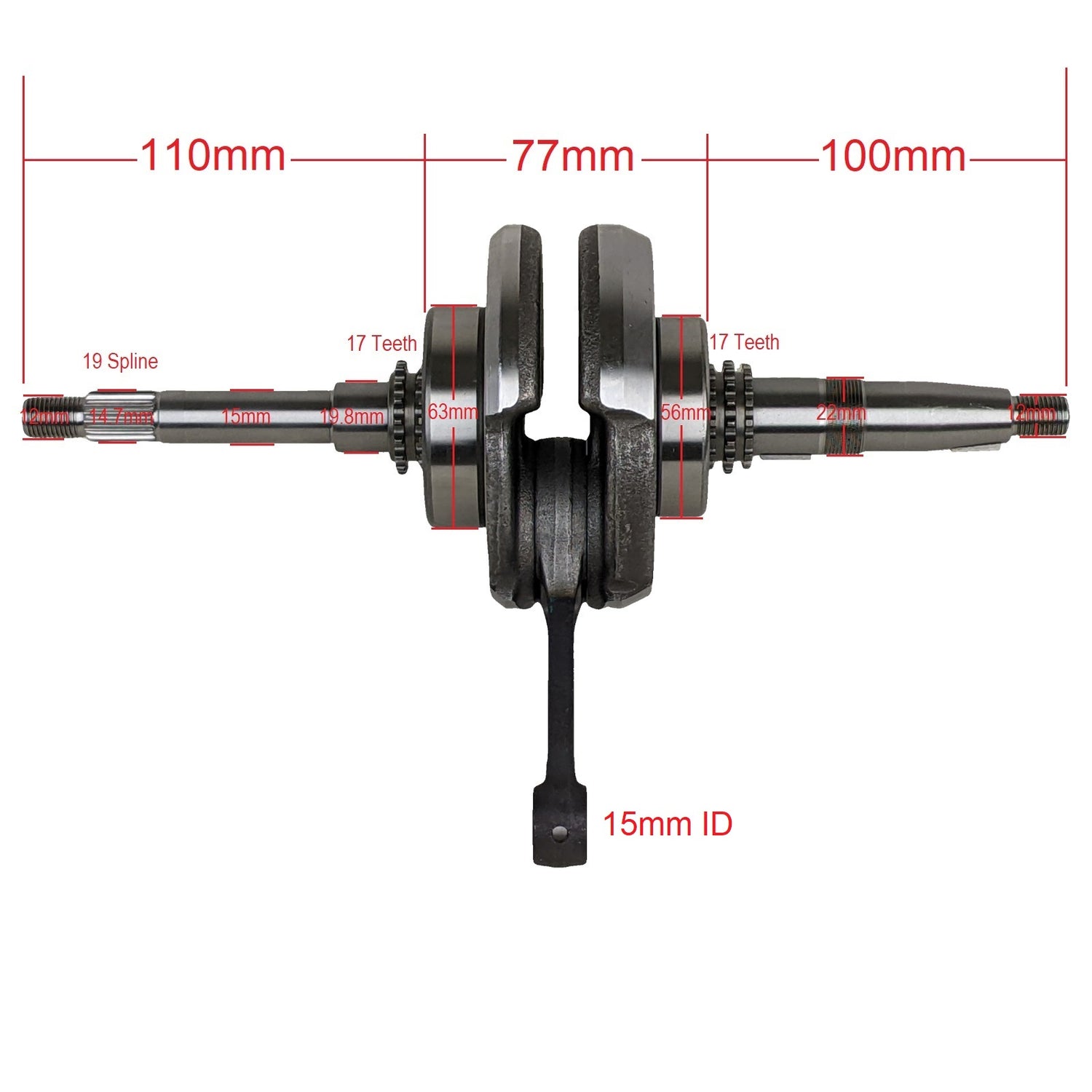

- Crankshaft Arm Inside Diameter:15mm
- Level Sprocket (Timing Driving Sprocket): 17 Teeth
- Wide Level Sprocket:17 Teeth/17 teeth thin level spline:19 Teeth
- Overall Length: 287mm
- Flywheel Thread Size: M12x1.25
- Flywheel Thread Length: 14mm
- Drive End Thread Size: M12x1.25
- Drive End Thread Length: 12mm
- Main bearings included Bearing marked 62/22x2
- Inner Diameter: 22mm, Outer Diameter: 56mm
- 4-Stroke GY6 170cc Engine
- Coolsport, TaoTao, Roketa, Kazuma, Sunl, Honda Scooter Models
