DC Stator Magneto, 12 Coil, 5-Wire, for GY6 125cc-150cc (Supermach ATV, CT125)
DC Stator Magneto, 12 Coil, 5-Wire, for GY6 125cc-150cc (Supermach ATV, CT125) is backordered and will ship as soon as it is back in stock.
Pickup available at 2875 N Berkeley Lake Rd NW #4
Usually ready in 1 hour
Not sure? Text or email a photo of your old part or your engine model number. We'll confirm it fits before you buy.
Delivery and Shipping
Delivery and Shipping
Ships from our Duluth, Georgia warehouse.
Most in-stock orders ship the same business day. UPS orders placed before 3:00 PM ET, USPS orders before 12:00 PM ET. After the cutoff, they go out the next business day.
Standard delivery runs 2 to 6 business days to most US addresses. US territories take 7 to 14. These are carrier estimates, not guarantees.
Free shipping on most parts, no minimum order. Oversized items (body kits, wheels, tires, batteries, and engines) are quoted to your address and shown at checkout before you pay.
We ship UPS and USPS, and email your tracking number as soon as the order leaves.
Questions? Call or text 404-532-9833. Full details on our Shipping page.
DC Stator Magneto, 12 Coil, 5-Wire, for GY6 125cc-150cc (Supermach ...
DC Stator Magneto, 12 Coil, 5-Wire, for GY6 125cc-150cc (Supermach ATV, CT125) is backordered and will ship as soon as it is back in stock.
Description
Description

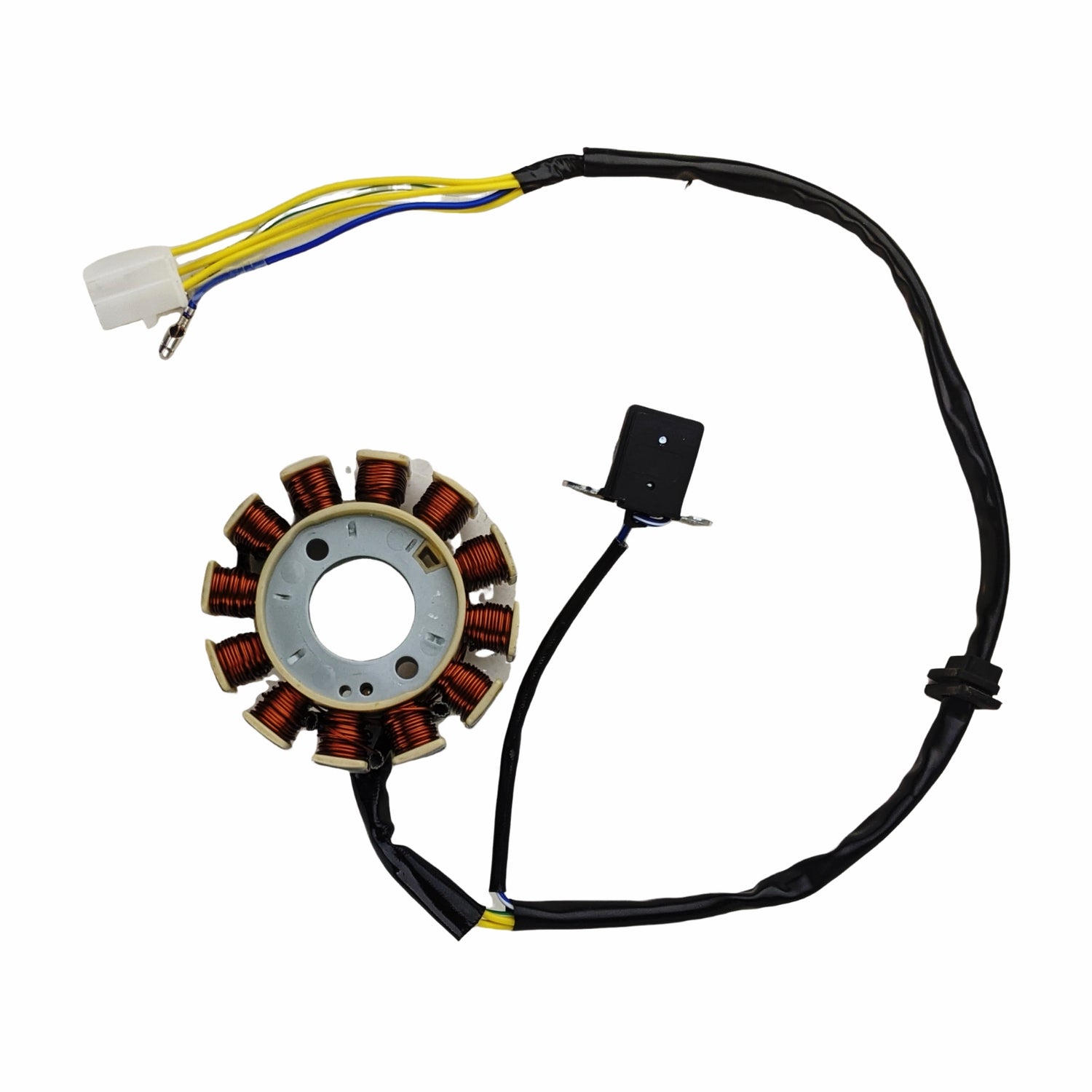

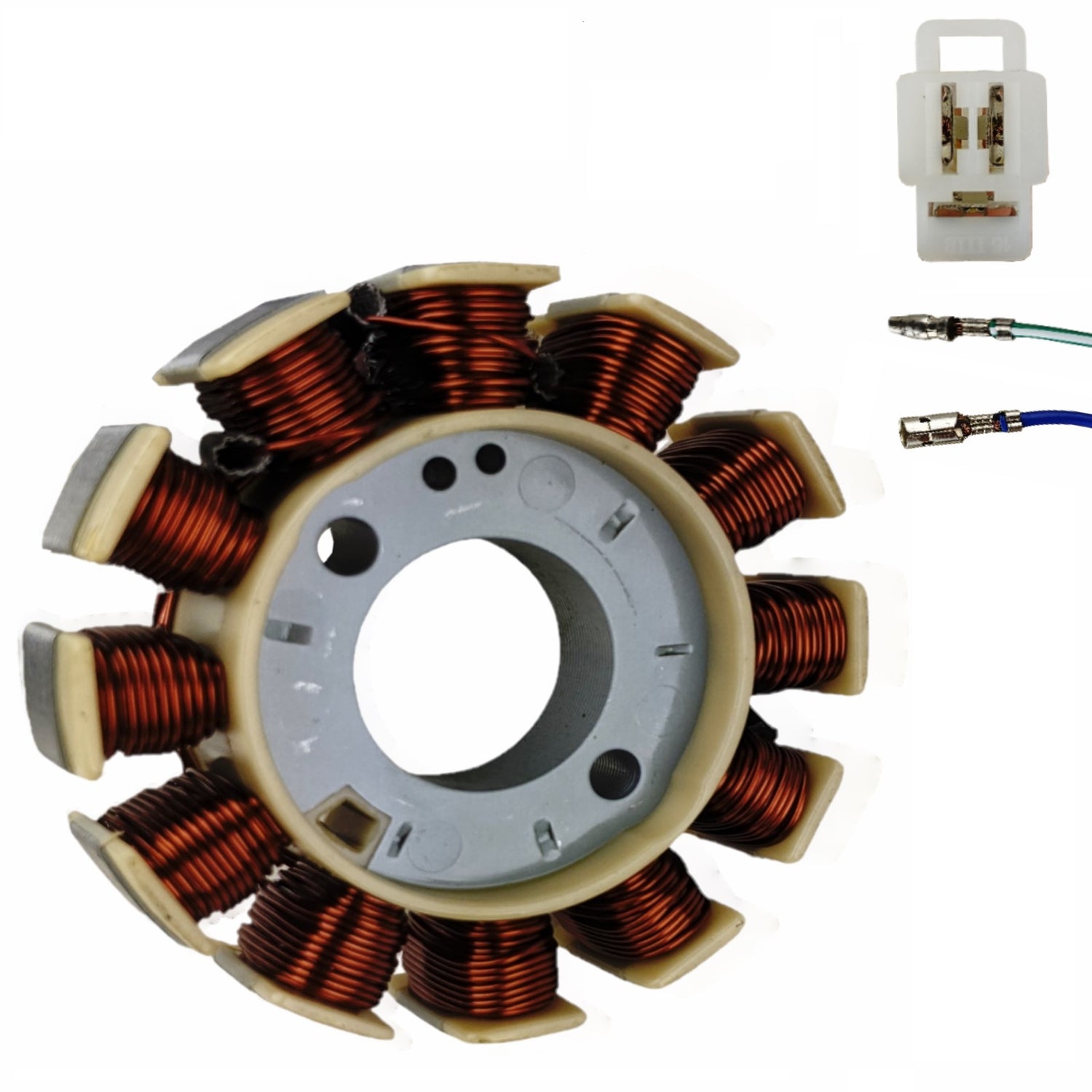

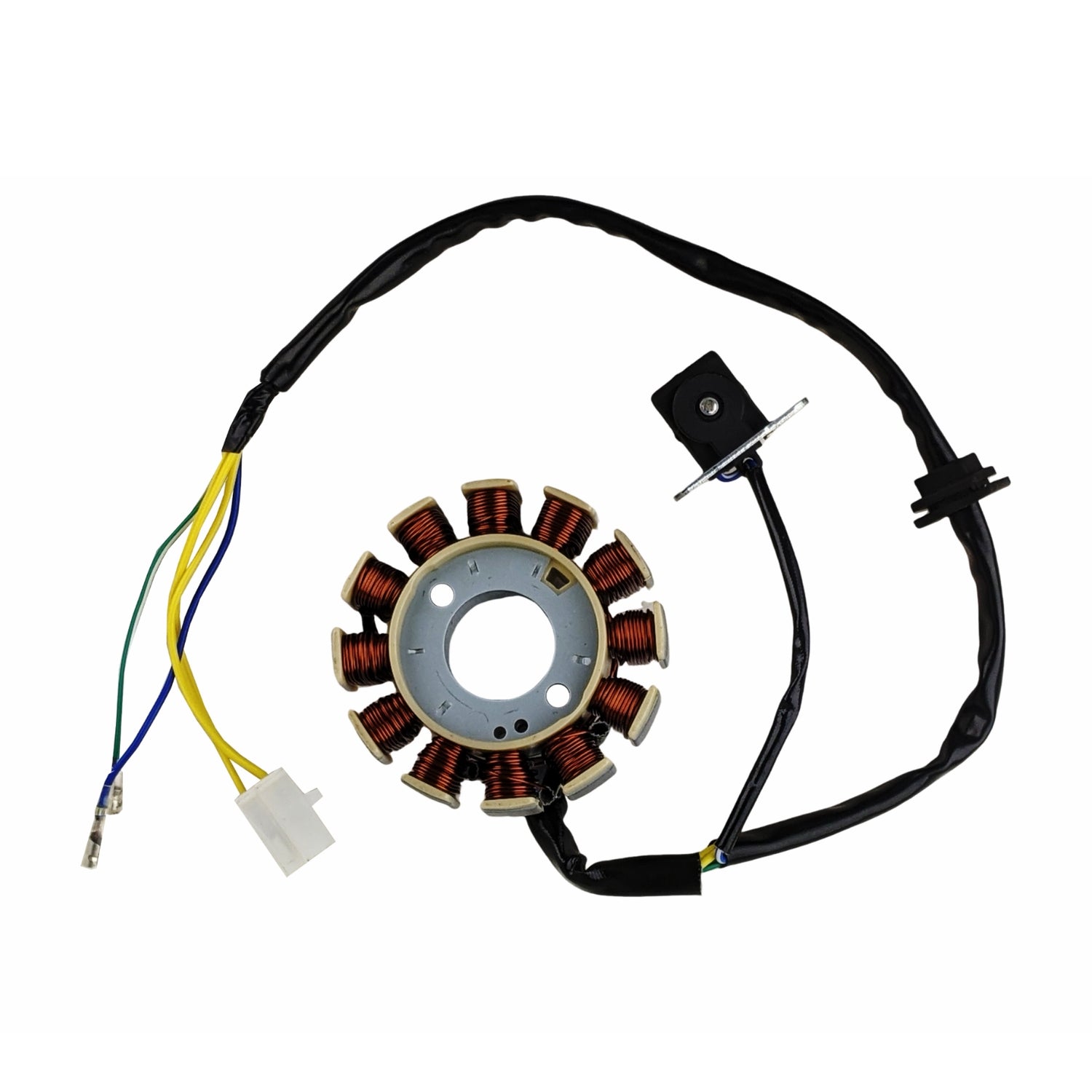

Stator Magneto DC - 12 Coil - 5 Wire - GY6 125cc-150cc - Supermach ATV CT125 125cc
Details:
- 12 coil
- DC Fired

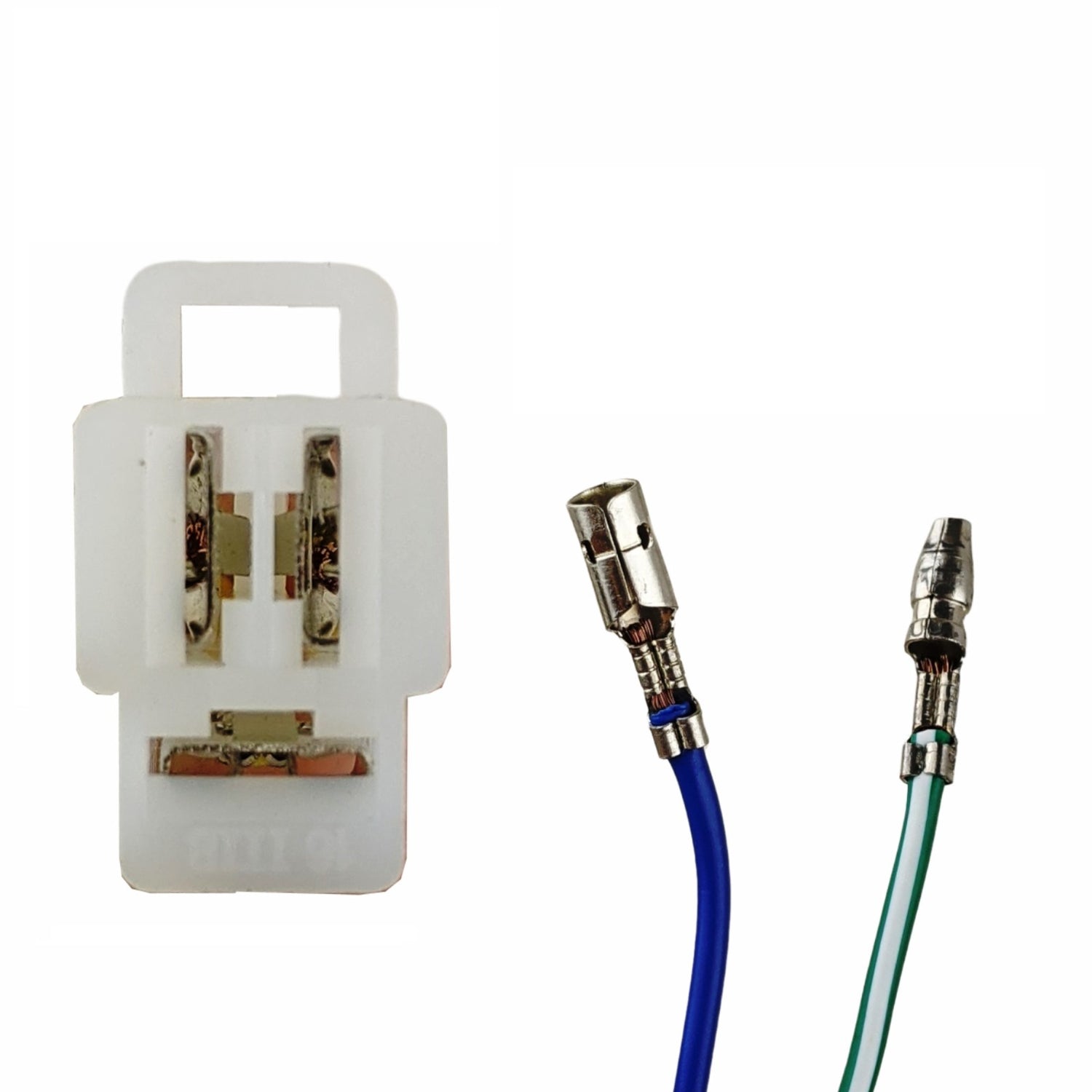

- 5 wires - 3 wire plug - 2 pigtail (+1 trigger wire)
- Wiring harness is approximately 19 inches long
- 2 bolt mounting
- Pick up trigger wire - single wire
- Center hole OD: 29mm (1.14 in)
- Overall width: 88mm (3.47 in)

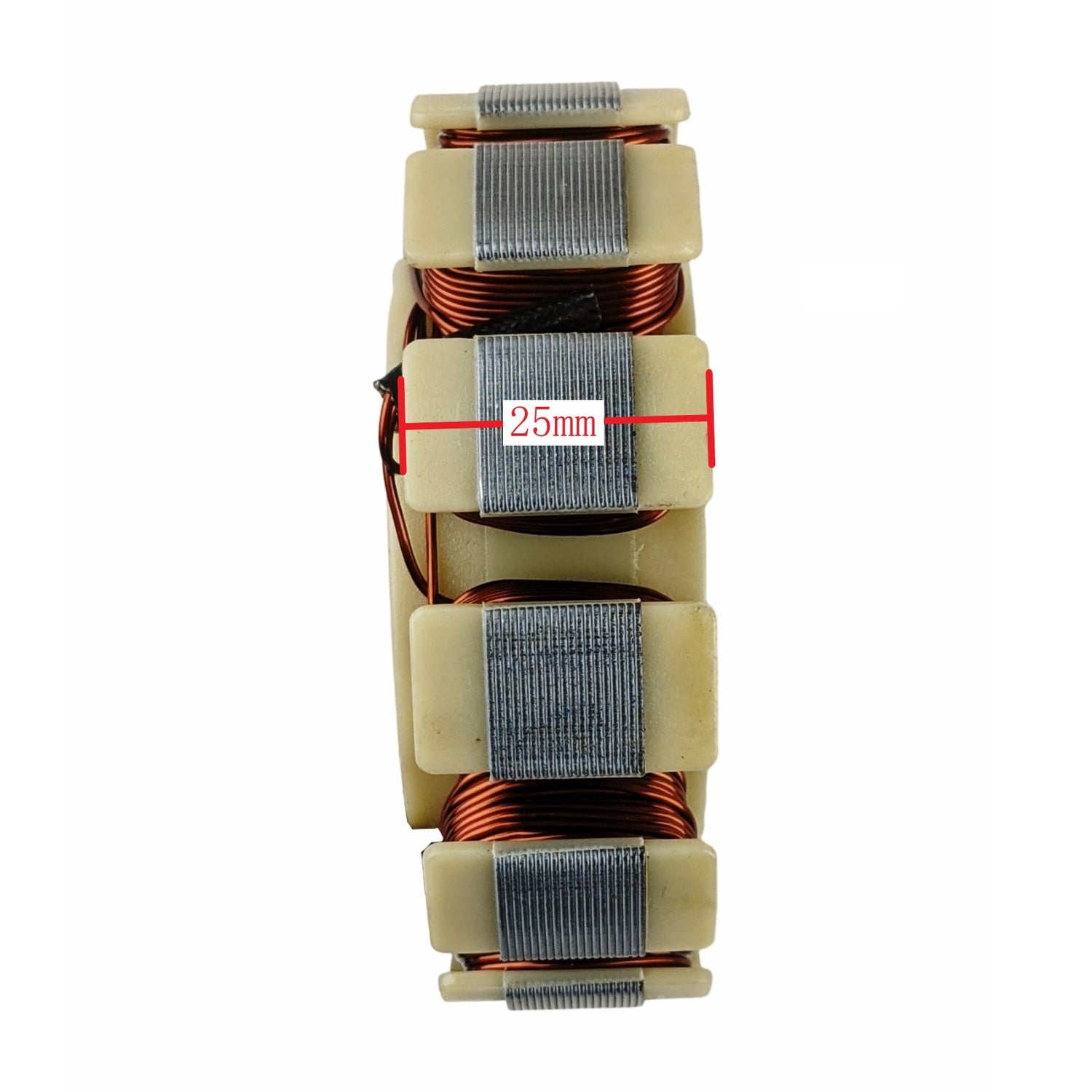

- Single coil height: 26.5mm (1.04 in)
- Bolt hole spacing: 41mm (1.61 in)
- Bolt hole diameter: 6mm (0.23 in)
- Compatible with 4 stroke GY6 125cc - 150cc 152QMI and 157QMJ motors
Known to Fit:
- Supermach ATV CT125 125cc
NOTE: Check out the detailed pictures to see if this will fit your vehicle.
